Power contactor, Easy TeSys Control, AC-3, 25A, 3P(1NO), 230V coil, 50/60Hz LC1E2510P7

Easy TeSys Control Power Contactor – Reliable Motor Control

This 3-pole contactor from the Easy TeSys Control series is a cost-effective and efficient solution for motor control. Designed for applications up to 11 kW at 400 V, it provides reliable operation in various industrial and domestic environments. Equipped with a 230 V AC (50/60 Hz) coil and a built-in 1NO auxiliary contact, it simplifies integration with existing control systems.

Construction and Application

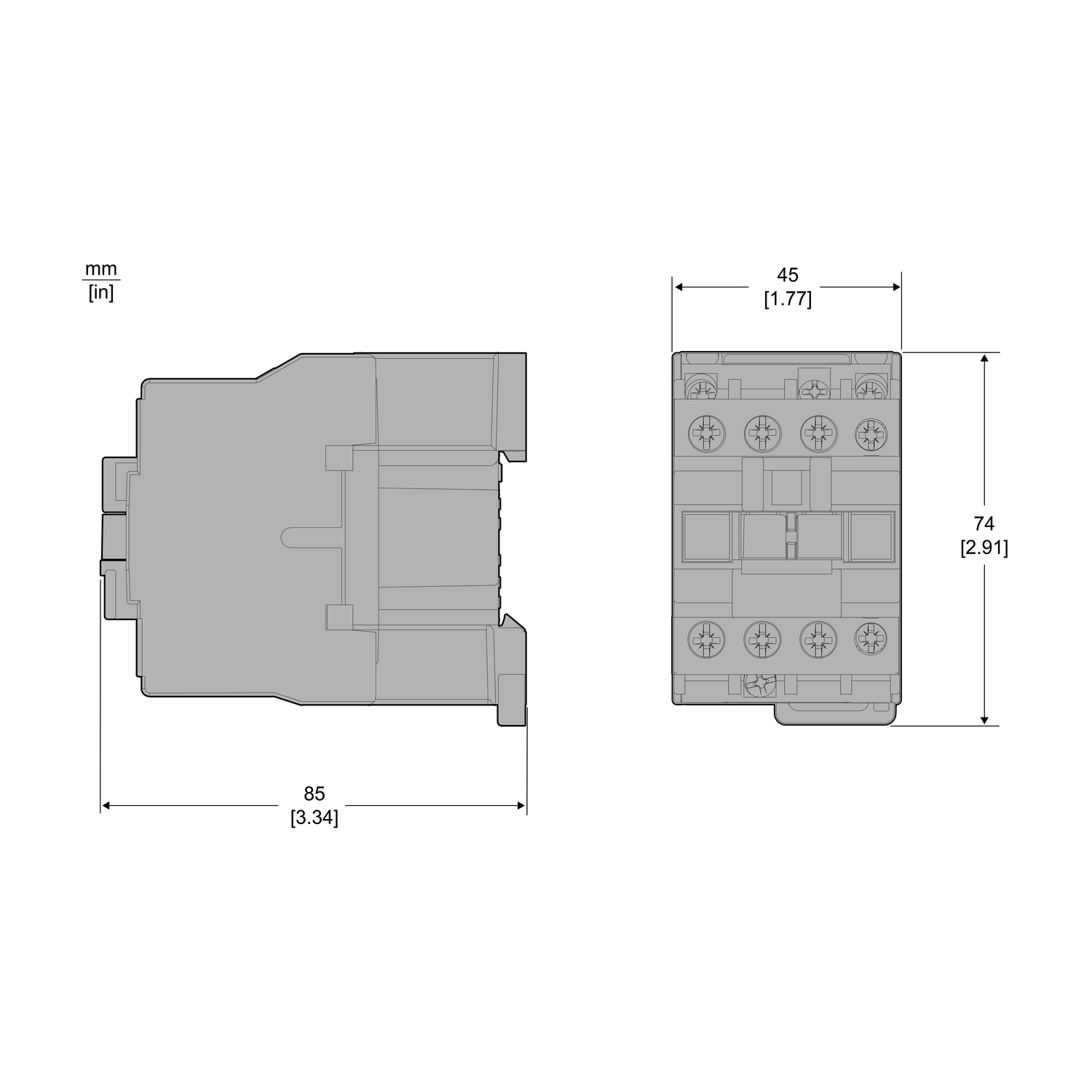

The LC1E2510P7 contactor is ideal for direct-on-line motor starting, reversing applications, and star-delta starters. Its compact dimensions (45 mm wide, 74 mm high, and 85 mm deep) allow for easy mounting in confined spaces. Screw terminals ensure solid and secure connections for power and control cables. It can be used in applications such as:

• Packaging industry
• Air conditioning, ventilation and heating systems
• Generators
• Pumps
• Domestic applications

Key Features and Benefits

• High Reliability: Designed for 1.2 million electrical cycles (AC-3) and 10 million mechanical cycles, guaranteeing long-lasting and trouble-free operation.
• Wide Voltage Range: Suitable for operation at 690 V AC (50/60 Hz), providing flexibility in various installations.
• Built-in Auxiliary Contact: Features one NO (normally open) auxiliary contact, which simplifies the implementation of additional control functions without the need for additional components.
• Easy Installation: Compact design and universal mounting screws facilitate installation on DIN rails or in other configurations.
• Compliance with Standards: Certified according to IEC, CCC and EAC standards, confirming its safety and quality. Green Premium compliant (RoHs/Reach).
• Rated Current: The rated operating current for AC-3 at 400V is 25A, and for AC-1 also at 400V – 36A. This allows it to be used in a variety of circuits.
• Versatility: Capable of operating in temperatures from -5°C to 55°C and at altitudes up to 3000 m above sea level, without reducing rated parameters.
