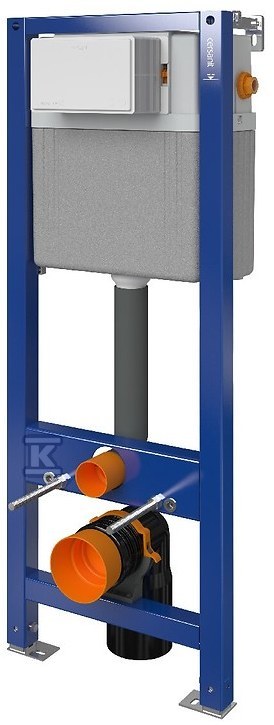

AQUA 22 mechanical concealed frame with the quick fix system and the fresh system S97-048

Product on request

Brand CERSANIT
Series:AQUA 2
Onninen Index:CLQ942
Manufacturer's code:
S97-048

Catalog numbers:

  • S97048
EAN:5902115757266
Bulk packaging:1 / 15 pcs

Suggested products

TECHNICAL DATA

Sales unit dimensions and weight: 1 pcs

length/width/height/weight/volume:0,142 m / 0,41 m / 1,13 m / 14 kg / 0,066 m3
Customs code:83024190

AQUA 22 mechanical concealed frame with the quick fix system and the fresh system S97-048

A frame for WC, for dry installation. Mechanical flush 3/5 L. Sturdy, narrow frame - only 41 cm. It guarantees long-term and trouble-free use.

Characteristics:

  • mechanical flushing
  • frame made of 40 x 40 mm profiles, powder coated steel
  • brake in the foot of the rack
  • outlet bend that can be set to the side and downwards with a 3-step depth adjustment
  • galvanized, swivel feet - rack with 4 mounting positions
  • QUICK FIX adjustable wall mounting system with micro-adjustment
  • ultra-quiet filling valve with brass connection end, NF certified
  • hygienic FRESH SYSTEM
  • mounting the flushing button from the top or from the front
  • possibility of connecting water to the tank in 4 points on the right (from the side, from the top) on the left (from the side, from the top)
  • suitable for a dual flush system: 2/4L, 3/5l (factory settings) or 3l/6l
  • color coding for easy installation
  • a wide selection of buttons
  • 10-year warranty on the concealed frame
  • 10-year warranty on the availability of spare parts

CERTIFICATES, APPROVALS, SAFETY, COMPLIANCE AND WARNINGS

The declaration of performance
