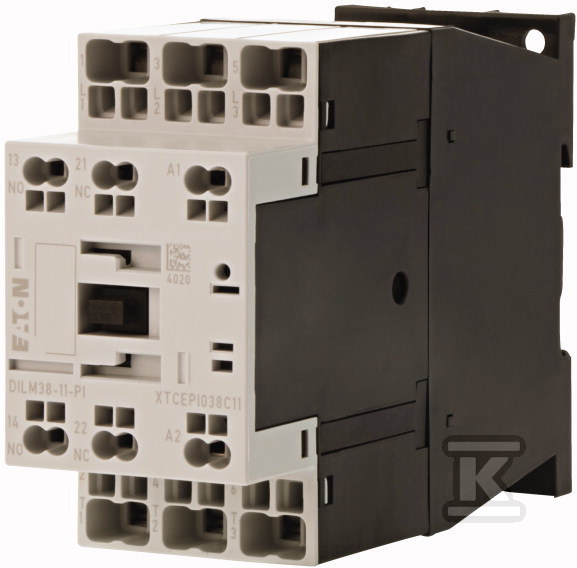

Power contactor DILM, 18.5kW/400V, 230VAC 50/60Hz control, 1NO+1NC DILM38-11(230V50/60HZ)-PI 199672

Power contactor for industrial and domestic applications

This reliable DILM power contactor, with a power of 18.5 kW at 400V, is a key element in motor control systems. It will work well in both demanding industrial applications and home installations. Designed for frequent AC-3 circuit switching, it provides effective protection and efficient operation.

Quick mounting and high reliability

Equipped with spring terminals, it enables significantly faster mounting – up to 50% time saving compared to traditional screw terminals. This technology also ensures high resistance to vibration and shock thanks to the constant spring pressure, which translates into long-lasting and trouble-free operation. Compatibility with existing accessories with screw terminals further facilitates modernization and expansion of installations.

Key features and parameters

This contactor is characterized by a solid construction and high technical parameters:

• Rated operating power AC-3 (400V): 18.5 kW – ideal for controlling medium-power motors.
• Rated operating current AC-3 (400V): 38 A – ensures safe operation even under heavy load.
• Control voltage: 230 VAC (50/60 Hz) – standard control voltage, compatible with most automation systems.
• Number of auxiliary contacts: 1NO + 1NC – enables the implementation of various control and signaling functions.
• Spring terminals: Quick and secure cable mounting without tools.
• Wide operating voltage range: 24…690 V AC (60 Hz) and 24…690 V AC (50 Hz) - versatility of application.

The contactor design with three main normally closed contacts guarantees reliable circuit switching, and its compact dimensions (85 mm x 45 mm x 115 mm) allow for easy integration with existing switchboards and control cabinets. The rated AC-1 current is as high as 45A, which confirms its versatility in various applications.
