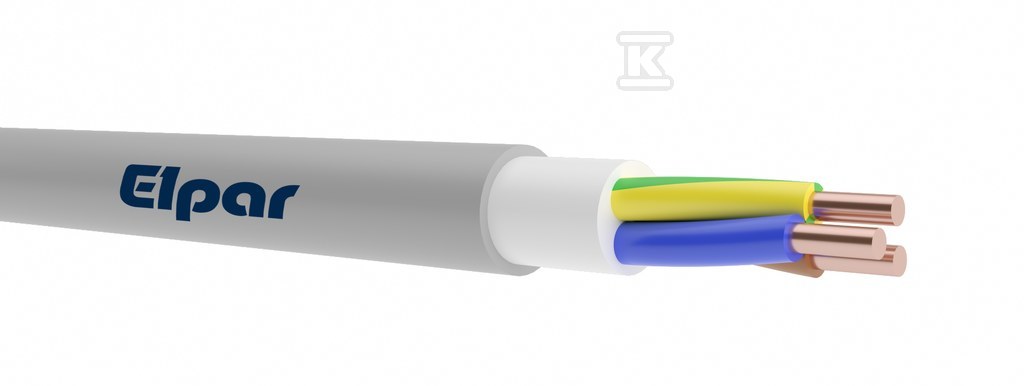

Halogen-free cable NHXMH-J 500V 3x2.5 NHXMH-J5-3X2,5

Halogen-free Installation Cable – Safety and Reliability

This halogen-free NHXMH-J 3x2.5 cable is a reliable choice for both professional installers and end users. Designed for a wide range of applications in electrical installations, it combines safety, durability, and ease of installation. This cable is particularly recommended in environments requiring high fire resistance and minimal emission of toxic gases in case of fire.

Construction and Application

The NHXMH-J cable is a multi-core cable with cross-linked polyethylene (XLPE) insulation and an outer sheath made of polyolefin. Copper conductors with a cross-section of 2.5 mm² ensure efficient current transmission. Stranded conductors simplify installation, while the absence of armor makes the cable flexible and easy to route under various conditions. It is ideal for installations in dry and humid environments, on plaster, under plaster, in masonry walls, and directly in concrete—provided it is installed in a fixed position. Suitable for industrial installations, residential buildings, and commercial facilities.

Safety First – Halogen-Free Properties

The key feature of this cable is its halogen-free construction (compliant with EN 50267-2-2). This means that in the event of fire, it emits minimal toxic gases and smoke—critical for protecting human health and life, as well as minimizing property damage. Additionally, the cable meets the requirements of EN 60332-1-2 regarding flame resistance. Its fire reaction class Dca-s1-d0 provides enhanced safety.

Key Product Features:

• Safety: Halogen-free sheath minimizes emission of toxic gases during fire.
• Flexibility: No armor allows easy routing in confined spaces.
• Durability: 2.5 mm² copper conductors ensure reliable current transmission.
• Versatility: Suitable for installation in both dry and humid environments.
• Standards Compliance: Meets European safety and quality standards (EN 50267-2-2, EN 60332-1-2).
• Thermal Resistance: Withstands operating temperatures up to 70°C, ensuring long-term performance.
• Color-Coded Conductors: Facilitates correct wiring during electrical installation.

The cable features a nominal conductor cross-section of 2.5 mm², insulation made of cross-linked polyethylene (XLPE VPE), and a polyolefin outer sheath. It is designed for operation at a rated voltage U of 500 V and U0 of 600 V. It contains three stranded Class 1 (solid) conductors. Its fire reaction class is Dca-s1-d0, and the minimum bending radius during fixed installation is 114 mm.

The cable is manufactured by Fabryka Kabli ELPAR Sp. z o.o., guaranteeing high manufacturing quality and compliance with applicable standards.
