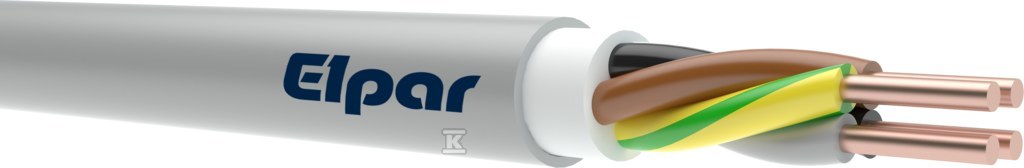

Halogen-free cable NHXMH-J 500V 4x1.5 NHXMH-J5-4X1,5

Halogen-free cable for electrical installations

The NHXMH-J 4x1.5 cable is a reliable solution for safe and efficient electrical installations. Made with copper solid conductors of 1.5 mm² cross-section, insulated with cross-linked polyethylene (XLPE), it ensures optimal conductivity and long-term performance. The halogen-free outer sheath made of polyolefin minimizes the risk of toxic gas emission during fire, enhancing safety for people and property.

Construction and application

The NHXMH-J cable is designed for use in residential, commercial, and industrial buildings. It performs excellently in both dry and humid environments, as well as outdoors, provided it is protected from UV radiation. The solid conductors ensure flexibility and ease of installation. Color-coded conductor identification simplifies correct wiring, and the absence of shielding makes it ideal for applications where shielding is not required.

• Safety: Halogen-free sheath minimizes toxic gas emission during fire, critical for health and life protection.
• Durability: Copper solid conductors and high-quality insulation ensure long-term, reliable operation.
• Flexibility: Solid conductors facilitate routing in confined spaces and ease of installation.
• Versatility: Suitable for various types of electrical installations—from residential to industrial.
• Standards compliance: Meets requirements of EN 50267-2-2 standard for halogen-free cables.

Technical specifications and additional information

The NHXMH-J cable features a rated voltage of 500 V (U) and 300 V (U0). The maximum allowable conductor operating temperature is 70°C, ensuring safe operation even under heavy load. The approximate outer cable diameter is 9.3 mm, with a weight of approximately 129 kg/km. The minimum bending radius for fixed installation is 111.6 mm—this must be considered when designing cable routes. Fire reaction class is Dca, s1, d0, a1—indicating limited flammability and low smoke emission. The cable has Class 1 conductor (solid core) and complies with PKWiU 27.32.13.
