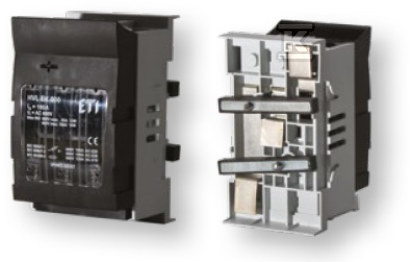

Busbar disconnect switch HVL-B EK 000 3P M8 001701011

Box disconnector – reliable installation protection

This three-pole HVL-B EK 000 M8 box disconnector is a key element of every electrical installation, providing safe and effective circuit disconnection. Designed to work with NH000 fuses, it provides reliable protection against overloads and short circuits. The design allows for mounting on both a mounting plate and directly on busbars, providing great flexibility during installation.

Functionality and application

The HVL-B EK 000 disconnector combines the functions of a main and safety disconnector, which means it allows for complete disconnection of the circuit for maintenance or emergency work. A rated continuous current of 160A makes it ideal for protecting circuits with higher loads. The possibility of connecting wires with M8 screw connections ensures a secure and durable connection.

• Versatility: Possibility of mounting on busbars and a mounting plate.

• Safety: Main and safety disconnector function guarantees full control over the circuit.

• High resistance: Rated operating voltage up to 690V AC ensures safe operation in various conditions.

• Compliance: Designed to work with NH000 fuse links – industry standard.

• Durability: Made of high-quality materials, ensuring long life and reliable operation.

Construction and parameters

The disconnector is characterized by a solid construction and thoughtful design. The IP20 degree of protection provides protection against accidental contact, and the cover handle makes operation easier. The use of screw connections guarantees a secure fastening of the wires, minimizing the risk of loosening connections during operation. The rated conditional short-circuit current of 63kA proves its ability to withstand sudden current surges without damage. Key parameters include a rated continuous current of 160A, operating voltage up to 690V AC, and compatibility with NH000 fuses. The IP20 degree of protection protects against accidental contact. The rated short-circuit current is 63kA.

The HVL-B EK 000 disconnector is an investment in the safety and reliability of your electrical installation – a solution for both professionals and demanding end users.
