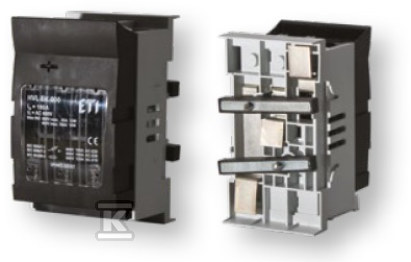

Busbar disconnect switch with BT00 HVL-B EK 000 3P BT00 10-70 terminal 001701012

Product features

• High continuous current: Rated continuous current of 160A allows the switch to be used in circuits with high loads.
• Versatility: Compatibility with NH000 fuses and the ability to be mounted on busbars make it an ideal solution for various applications.
• Safety: Main and safety switch functions provide comprehensive protection for the electrical installation.
• Durability: Made of high-quality materials guarantees a long service life even in harsh working conditions.
• Easy installation: Designed for mounting on rails with a spacing of 60mm and a thickness of 5-10 mm, simplifying the installation process.
• BT00 10-70 terminals: Allow connection of cables with a cross-section of up to 50 mm² without the need for additional accessories.
• Protection class IP20: Provides basic protection against accidental contact and the ingress of solid objects larger than 12.5 mm.
• Rated operating voltage: Ability to operate at a maximum voltage of 690 V AC (40-60 Hz) makes it suitable for a wide range of industrial and commercial applications.

Busbar switchgear – reliable installation protection

This three-pole HVL-B EK 000 busbar switchgear, designed for mounting on busbars, is a key element in electrical protection systems. It allows for safe disconnection of circuits in the event of a failure or the need to perform maintenance work. The switchgear design allows it to work with NH000 fuse links, providing effective protection against overloads and short circuits.

Functionality and application

This switchgear finds application in both industrial installations and public buildings. Its solid construction and high resistance to environmental conditions guarantee long-lasting and trouble-free operation. The ability to mount on busbars simplifies and speeds up installation, and the screw connection ensures a secure and durable connection of the wires. Additionally, the device functions as a main switch and a safety switch, increasing its versatility.

Key features and benefits

The HVL-B EK 000 switchgear is a solid and reliable solution for professionals and users looking for a safe and effective way to protect their electrical installations. Its versatility, ease of installation and high quality of workmanship make it an ideal choice for a wide range of applications.
