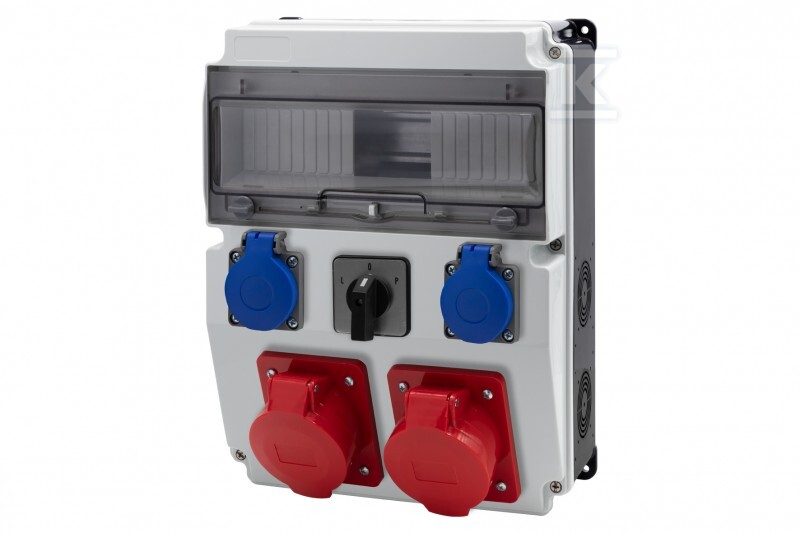

Distribution box CAJA 12M BICOLOR - sockets 2x16A 5P, 2x230V, L/P(32A) F3.2716

Electrical distribution box for various applications

The CAJA 12M BICOLOR distribution box from F-elektro is a practical and reliable solution for the safe distribution of electrical energy. It is suitable for both domestic and industrial installations, providing protection for connected devices. The design of the distribution box allows for easy configuration and installation, and the solid construction guarantees long-term operation.

The distribution box is equipped with two 16A 5-pole sockets and two 230V sockets, as well as a L/P circuit breaker with a rated current of 32A. This allows for the connection of various energy consumers, from devices with higher power consumption to standard household appliances. The housing with dimensions of 330mm x 240mm x 140mm made of durable ABS plastic provides high resistance to mechanical damage and atmospheric factors (IP66 protection).

• Versatility: 12 modules allow for flexible configuration and adaptation of the distribution box to individual installation needs.
• Safety: Equipped with sockets with IP44 protection, minimizes the risk of electric shock and protects against moisture.
• Durability: ABS housing and stainless steel screw cover mounting ensure corrosion resistance and long-term use.
• Easy installation: PG21 cable gland facilitates the introduction of cables into the distribution box, and N and PE terminal block provides a safe connection of neutral and protective conductors.
• Proper wiring: For 16A/5p sockets, it is recommended to use 2.5mm² H07V-K /LgY/450/750V cables, and for 230V sockets 1.5 mm² H07V-K /LgY/450/750V cables.

The CAJA 12M BICOLOR distribution box is an ideal choice for installers looking for a reliable and functional solution for electrical distribution, and for end-users who value safety and ease of use. Solid construction and high quality workmanship guarantee trouble-free operation for many years.
