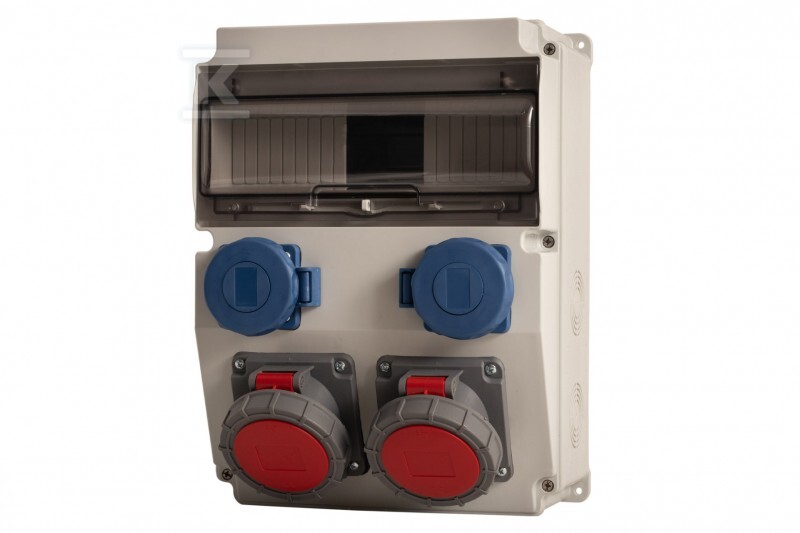

Distribution box CAJA 12M - sockets 2x16A 5P, 2x230V IP65 F3.1589

Electrical distribution box for various applications

The CAJA 12M distribution box is a solid and functional solution designed for the safe placement and protection of electrical components in various installations. It is suitable for residential, office, industrial buildings, as well as public facilities. Its versatility and configuration flexibility make it an ideal choice for professionals and end-users.

Construction and equipment

The distribution box housing is made of durable ABS, providing high resistance to mechanical damage and external factors. The IP65 protection rating guarantees safe use even in harsh conditions, protecting against dust and water jets. Inside there are two 16A 5P sockets and two 230V sockets, allowing connection of a wide range of devices. Additionally, the distribution box offers space for 12 modules, allowing the installation to be expanded with additional protection or control elements. The PG21 cable gland provides a tight introduction of cables into the housing. The sockets have an IP44 protection rating.

Installation and safety

The distribution box is easy and intuitive to install thanks to the solid mounting of the cover with a stainless steel screw. The terminal block for N and PE conductors facilitates correct connection of grounding and neutral. The wiring used – 2.5mm2 H07V-K /LgY/450/750V for 16A/5P sockets and 1.5 mm2 H07V-K /LgY/450/750V for 230V sockets – ensures safe energy transmission. The entire construction has been designed with user safety and ease of maintenance in mind. Availability of other configurations from the CAJA series (9M, 15M, 20M, 26M) allows you to tailor the solution to individual project needs.
