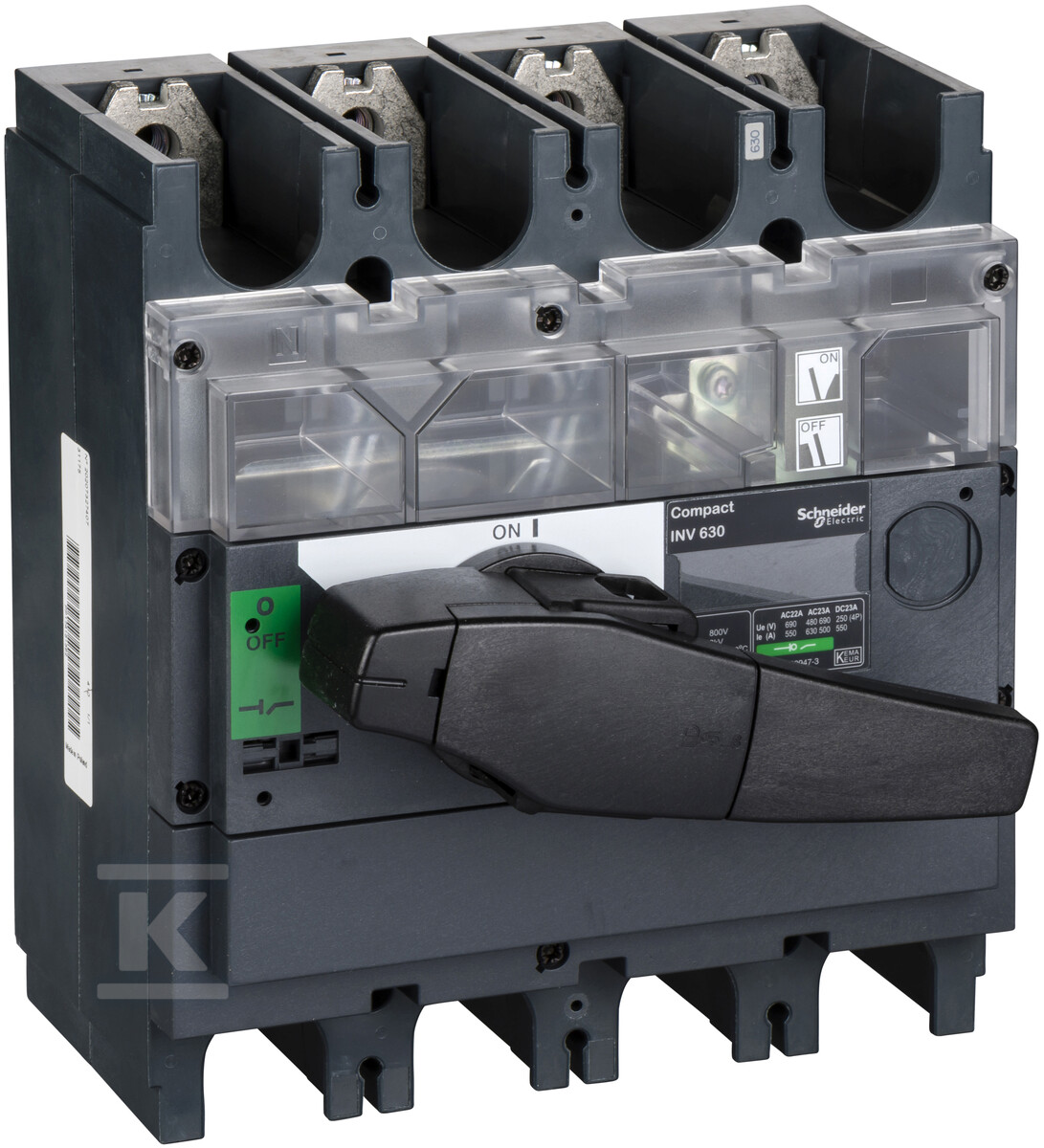

Disconnect switch INV630 630A 4P 31175

Robust disconnector for safe circuit disconnection

The INV630 disconnector is a reliable device designed for the safe disconnection of electrical circuits. A rated continuous current of 630A and high short-circuit resistance (150 kA) make it an ideal solution for both industrial and commercial installations.

The design allows for mounting on a plate, in distribution boards or centrally on a panel, providing flexibility during installation.

Functionality and application

The device functions as a main and repair disconnector, allowing for safe power disconnection for maintenance or repair work. The long rotating handle with a black control element ensures convenient and intuitive operation. Screw connection ensures a secure and durable connection of the wires. Equipped with a locking mechanism, it prevents accidental circuit opening during operation.

Key features and benefits

• High performance: Rated continuous current of 630A and operating power of 315 kW (AC-23, 400 V) allow for handling demanding loads.
• Safety: Rated conditional short-circuit current of 150 kA provides effective protection against the effects of short circuits.
• Universal mounting: Possibility of mounting on a plate, in distribution boards, centrally on a panel and indirect mounting increases installation flexibility.
• Durability and reliability: Solid construction of the permanently mounted device guarantees long-lasting and trouble-free operation.
• Clear operation: Long rotating handle with a black control element facilitates operation and identification of the device status.
• Versatile application: Ideal as a main or repair disconnector in industrial, commercial installations and public buildings.
• IP40 protection class: Provides protection against access to live parts and against the ingress of solid objects larger than 1mm.

Additional information: the device has 4 poles and a rated operating voltage in the range of 690-690V. The number of switchable auxiliary contacts is 4, which enables integration with control and signaling systems.
