Motor starter GZ1E push-button drive I=1.6-2.5A screw terminals GZ1E07

Motor starter GZ1E07 is a component of the EasyPact TVS series by Schneider Electric, designed to protect motors in simple applications. It provides comprehensive protection against overloads, short circuits, and phase failure, and also enables manual motor control via buttons. It is a complete device in a housing, ready for mounting on a DIN rail.

The starter's construction is based on thermomagnetic technology, guaranteeing a fast and reliable response in the event of a failure. The rated continuous current is 2.5A, and the overload release setting range is 1.6-2.5A, allowing it to be adapted to various loads. The starter is designed to operate in networks with a voltage of 690V AC and a utilization category of AC-3, which means it is perfect for applications related to motor starting. The short-circuit capacity Icu at 400V AC is as high as 100kA, ensuring a high level of installation safety.

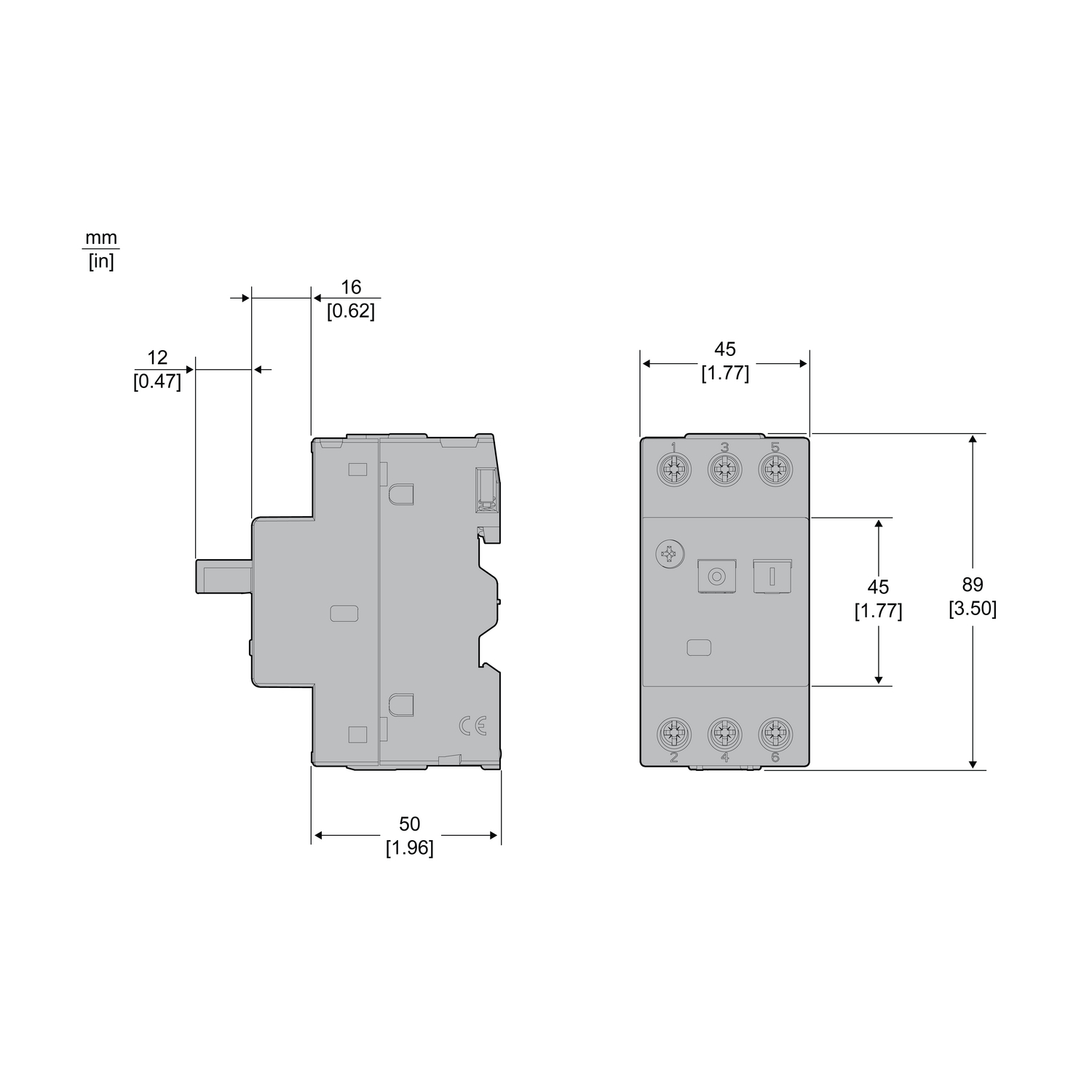

Thanks to its compact dimensions (44.5 mm width, 89 mm height and 78 mm depth) and simple mounting using screw terminals, the GZ1E07 starter is easy to install and integrate with existing systems. Its solid construction and high quality of workmanship guarantee long-lasting and trouble-free operation. Additionally, the starter complies with IEC 60947-2 and IEC 60947-4 standards, confirming its compliance with applicable safety standards.

• Thermal protection protects the motor from overheating – especially important with frequent starts or operation under heavy load.
• Built-in phase failure protection prevents motor damage caused by voltage asymmetry.
• The ability to control the motor with buttons provides convenience and ease of operation.
• High short-circuit capacity (100 kA) minimizes the risk of damage to the installation in the event of a short circuit.
• Universal application – ideal for pumps, fans, generators and other devices using electric motors.
• Compliance with IEC standards guarantees safety and reliability.
• Compact dimensions facilitate mounting even in tight spaces.

The GZ1E07 starter is an ideal solution for both professional installers looking for a reliable and easy-to-install protective device, and for end-users who value the safety and comfort of using their electrical equipment.
