Motor starter GZ1E push-button drive I=2.5-4A screw terminals GZ1E08

Motor starter GZ1E08 is a compact and reliable device designed to protect electric motors in industrial and commercial applications. It provides effective protection against overloads, short circuits, and phase failure, which translates to a longer motor life and minimizes the risk of failure. Equipped with a push-button drive, it allows for convenient manual switching on and off of the circuit.

The construction based on thermomagnetic technology guarantees a quick and precise response to irregularities in the motor's operation. The rated continuous current of 4A and the short-circuit capacity of up to 100kA at 400V AC make it a suitable choice for motors with a power of up to 1.5kW (at 400V). The three-pole design provides complete circuit protection.

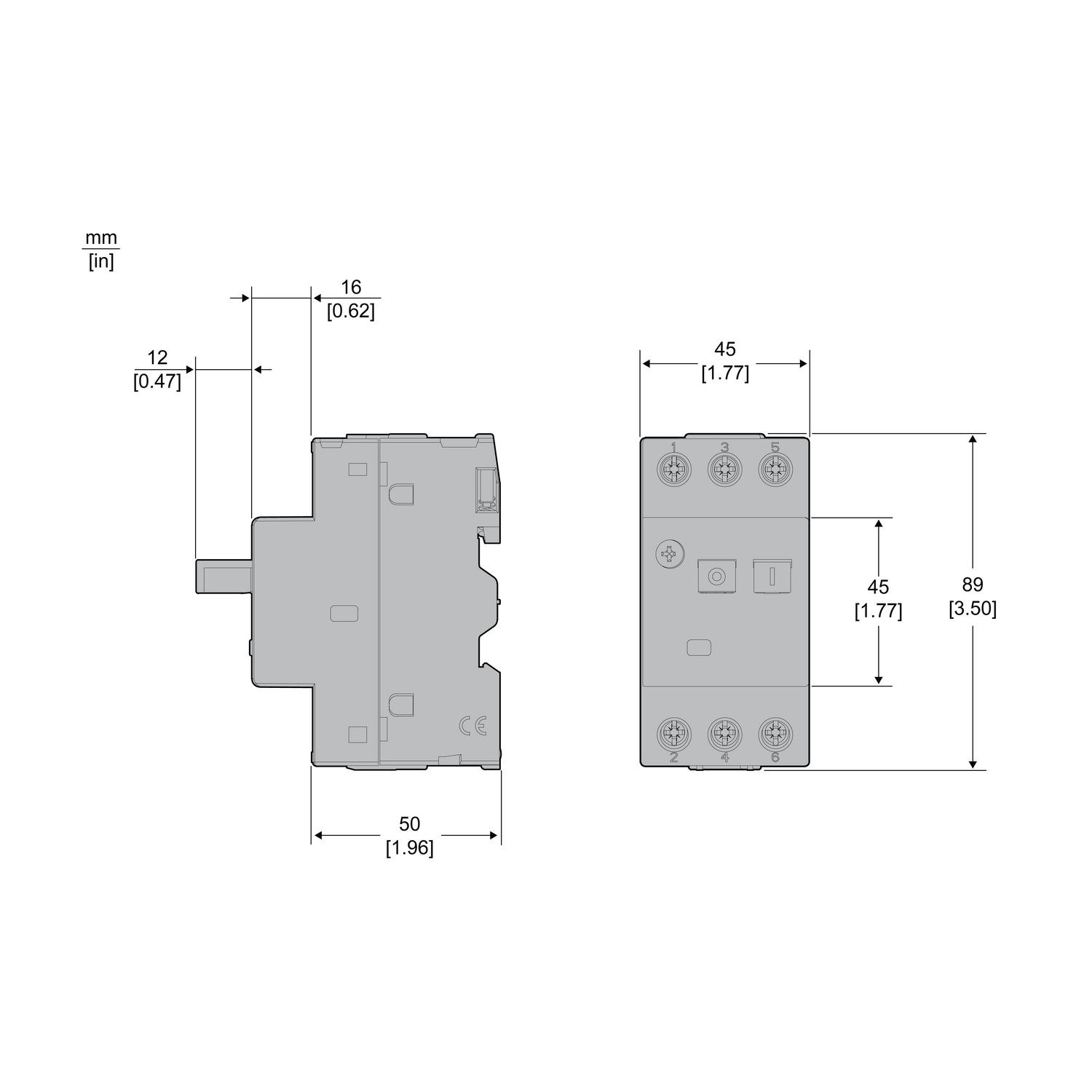

The installation of the starter is simple and intuitive thanks to the use of screw terminals. Compact dimensions (78mm depth, 44.5mm width, 89mm height) allow for installation in limited space. The IP20 degree of protection provides basic protection against touch and ingress of solid objects.

Key features and benefits:

• Versatile application: ideal for controlling and protecting motors in various applications – from pumps and fans to industrial machinery.
• Complete protection: protection against overload, short circuit and phase failure in one device – saving space and costs.
• Simple operation: push-button drive allows easy manual switching on and off of the circuit.
• High reliability: solid construction and the use of high-quality materials guarantee long-lasting and trouble-free operation.
• Easy installation: screw terminals facilitate quick and safe connection of wires.
• Compliance with standards: meets the requirements of IEC 60947-2 and IEC 60947-4 standards, ensuring safety of use.

The GZ1E08 starter is part of the EasyPact TVS series from Schneider Electric, which is characterized by a modern design, ease of installation and high efficiency. This device is an optimal solution for installers looking for a reliable and economical way to protect electric motors. Additionally, its compact size makes it also perfect for applications where space is limited.
