Deep well cover 110-140 WG-EMS WG110/140

Oh! NEW
from 1 pcs305,83 zł
gross / pcs
z 57 pcs
z 57 pcs
Onninen Index:DNB878
Manufacturer's code:WG110/140
EAN:5903181619250
Bulk packaging:1 / 10 pcs

Suggested products

TECHNICAL DATA

Sales unit dimensions and weight: 1 pcs

length/width/height/weight/volume:0,23 m / 0,2 m / 0,09 m / 1,71 kg / 0,004 m3
Customs code:74122000

Deep well cover 110-140 WG-EMS WG110/140

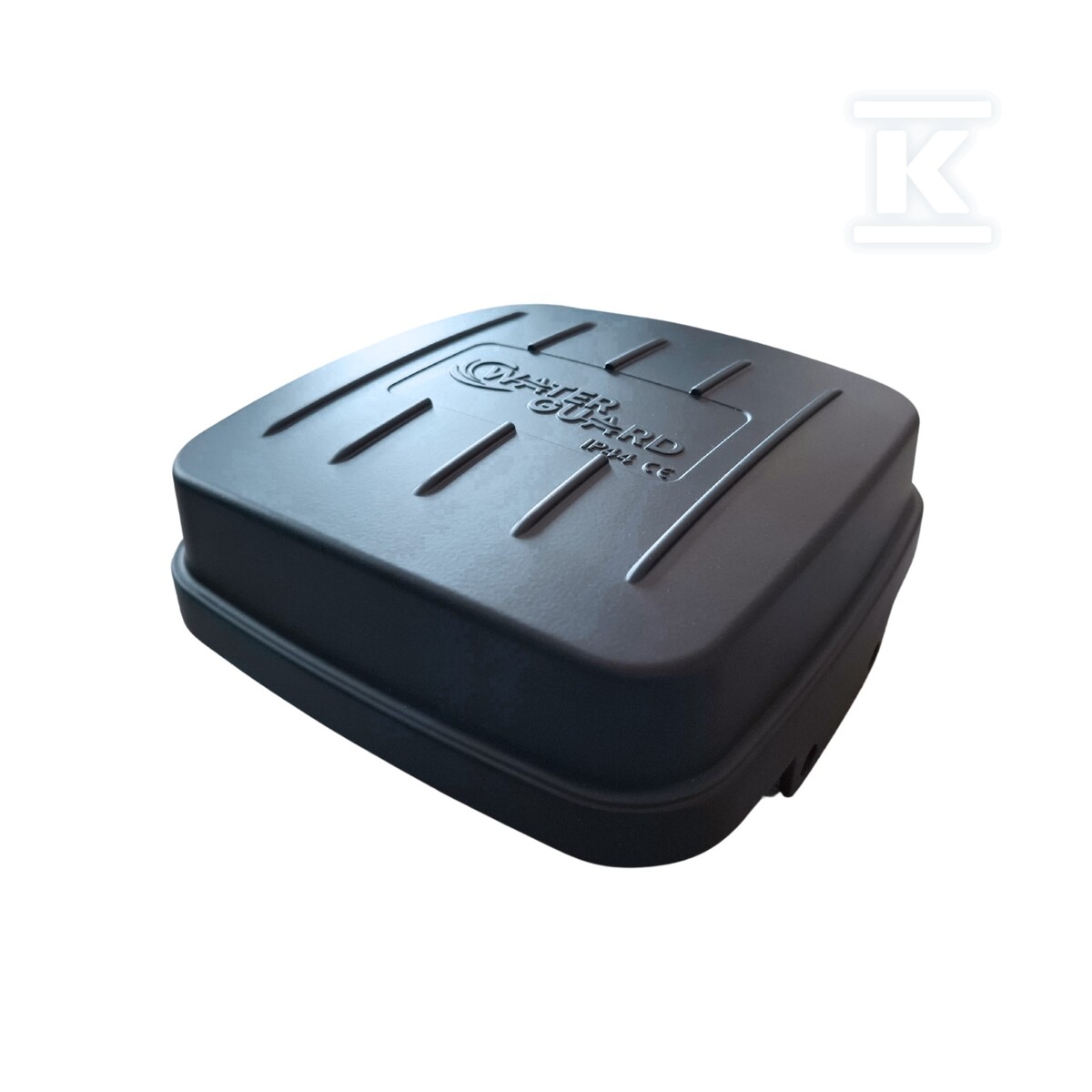

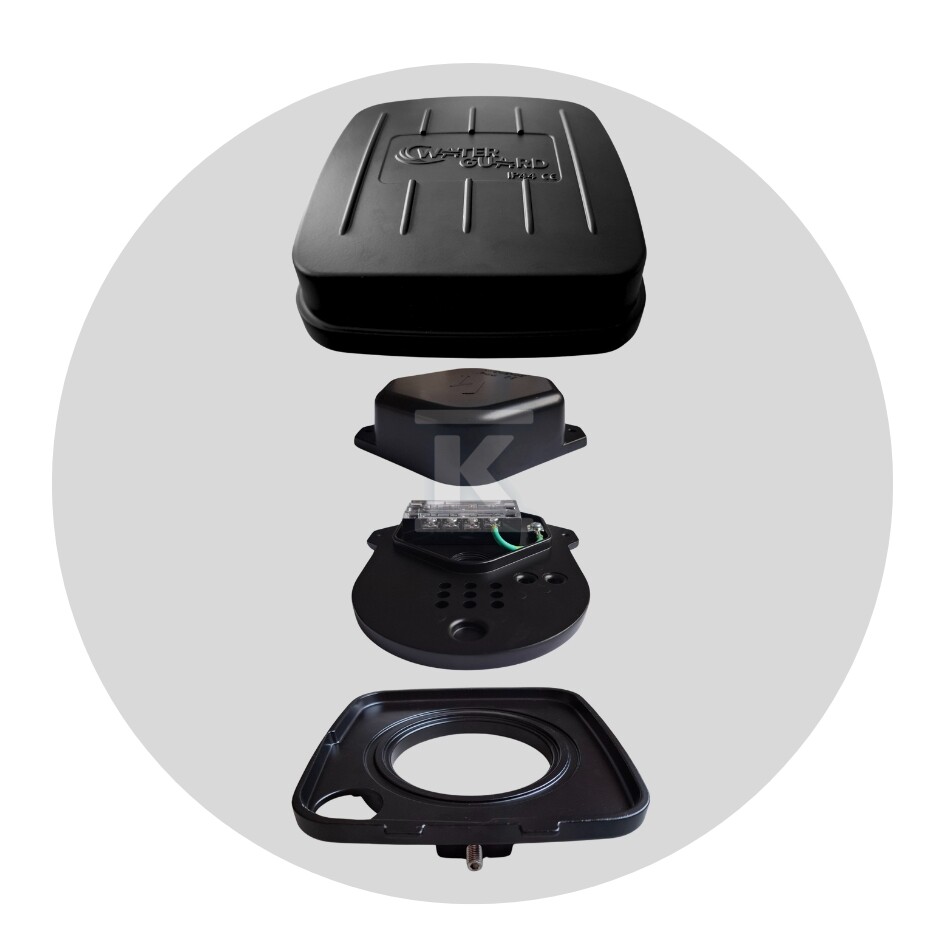

  1. Outer cover - made of durable anodized aluminum alloy with a lacquer coating. It protects the interior of the well from external factors, such as precipitation or contaminants. Its shape and grooves help drain water and increase the stiffness of the entire structure.
  2. Inner cover - protects the electrical terminal strip from external factors
  3. Mounting plate with electrical terminal - the plate is responsible for the stable fastening of wires and any electrical components (e.g., terminal block). It allows easy access for connecting and servicing the installation. Equipped with a grounding wire, which increases operational safety.
  4. Bottom part of the cover - an element that closes the entire structure from below, featuring an opening fitted to the deep well pipe. Thanks to appropriate reinforcements and dimension matching, it guarantees stable installation of the whole unit. Screws join all cover parts into one cohesive whole. This modular cover design facilitates maintenance, installation, and potential expansion with additional accessories, while simultaneously providing effective protection for the deep well. Technical data: well cover for pipes with a diameter of 125-140 mm made of a special, durable anodized aluminum alloy with the addition of copper, magnesium, and silicon; vent; electrical terminal strip with L1, L2, L3 terminals and grounding

CERTIFICATES, APPROVALS, SAFETY, COMPLIANCE AND WARNINGS

Declaration of Conformity
