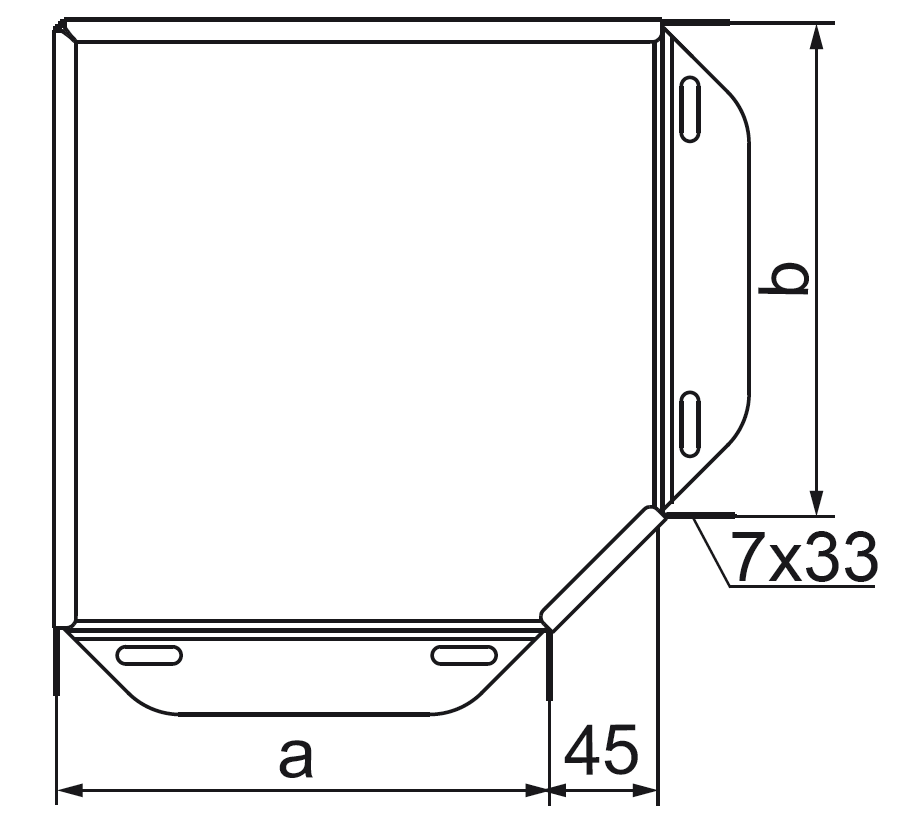

90 ° bend KKBJ150H80, sheet thickness 1.0 mm 186115

Changing the direction of the cable route S - steel galvanized by the Sendzimir method PN-EN 10346: 2015-09. Custom order: F - steel galvanized by the hot dip method PN-EN ISO 1461: 2011, or by the zinc flake method only for an element with a max. 200 mm E - stainless steel L - varnishing in the standard RAL palette - assembly with SGKM6x12 or SGM6x12 screws - for non-standard orders, specify dimensions a and b (if a = 200mm and b = 100mm - the order should have the symbol KK...200/100H80)
