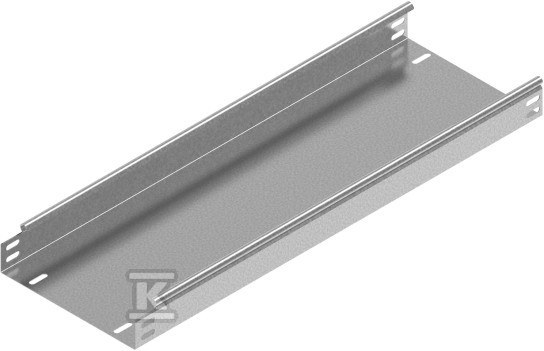

Channel KBL200H50/3 /3m/ 152020

Cable Trough System – Robust Cable Routing

The KBL200H50/3 cable trough is a reliable component of a cable routing system, designed for both professional applications and demanding users. Manufactured from 0.7 mm thick steel, it ensures durability and resistance to mechanical damage. The cable trough is hot-dip galvanized, guaranteeing high corrosion resistance even under harsh environmental conditions.

Design and Application

The cable trough, measuring 200 mm (width) x 50 mm (height) and 3000 mm in length, provides ample space for routing cable bundles. Its usable cross-section of 9800 mm² allows for easy accommodation of cables of varying diameters. The absence of side and bottom perforations offers additional protection against damage and contamination. The push-in connection system, based on tightening SGKM6x12 or SGM6x12 screws, enables fast and easy installation and flexible adaptation to specific installation requirements. This solution is particularly appreciated by installers who value work efficiency.

Benefits and Product Features

• Robust construction: 0.7 mm thick steel construction ensures stability and long-term service life.
• Corrosion resistance: Hot-dip galvanization protects against atmospheric exposure and corrosion, essential for outdoor or moisture-exposed installations.
• Large capacity: 9800 mm² usable cross-section allows for comfortable routing of large numbers of cables.
• Easy installation: Push-in connection system accelerates installation and allows flexible customization to project needs.
• Versatility: Suitable for commercial, industrial, and residential installations.
• Customization options: Available with steel galvanizing by immersion method per PN-EN ISO 1461:2023-02 and powder coating in standard RAL colors (on request).
• Weight: 1.77 kg/m facilitates transport and handling of the cable trough.

Note: When selecting a replacement cable trough with different height, all system components must be matched accordingly to ensure proper system functionality. BAKS KAZIMIERZ SIELSKI cable troughs are a proven choice for professionals seeking a reliable solution for cable routing.
