Cable tray CF 30/100, 30x100mm, stainless steel 316L, E90 system /3m/ CM000024

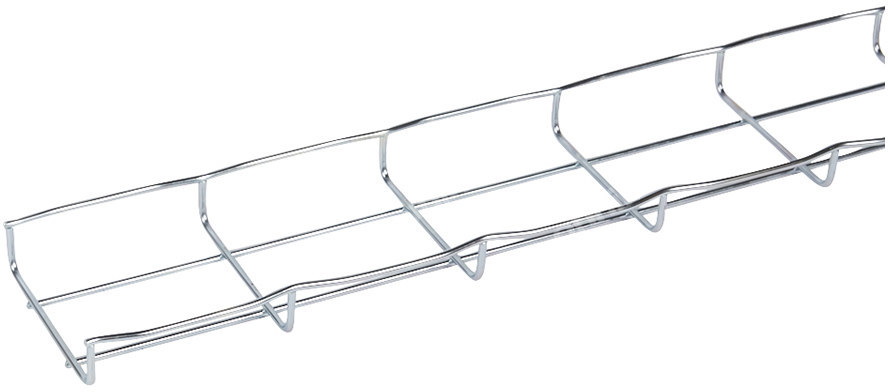

Stainless Steel 316L Mesh Cable Tray, U-profile, 30x100 mm

The cable tray is manufactured from stainless steel 316L (1.4404), with surface etching and passivation — ensuring corrosion resistance even in aggressive environments, such as installations near the sea, hygienic medical facilities, or the chemical industry. It requires no additional surface protection, and the material's natural structure remains intact throughout its entire service life.

The U-profile with dimensions 30x100 mm and a length of 3000 mm has a usable cross-section of 2643 mm², allowing for the free routing of multiple cables without excessive crowding. The absence of built-in partitions provides flexibility in cable organization — you can arrange them according to installation requirements, without structural limitations.

The operating temperature range from -20 to +120 °C enables use in both cold rooms and near heat sources — for example, with power cables supplying heating devices or in ventilation ducts. The weight is 0.52 kg/m, making it lightweight for installation while remaining sufficiently rigid to resist deformation under cable load.

It does not possess fire-resistance functionality — it is not part of an E90/E30 fire protection system. This cable tray is intended solely for cable organization and routing, not for fire insulation.

Color: stainless steel — natural metal appearance without paint or coating, which does not yellow or fade. Installation is simple: it can be mounted to walls or ceilings using standard brackets or snap-in screws. The absence of connectors means each element is an independent segment — ideal for custom projects or where precise length matching is required.

Please note: this is not a cable tray for concealed installations or for use in explosive zones. It is a tool for installers who require durable, clean, and corrosion-resistant cable guides — without compromise.
