Cable tray CF 30/200, 30x200mm, stainless steel 304L, E90 system /3m/ CM000048

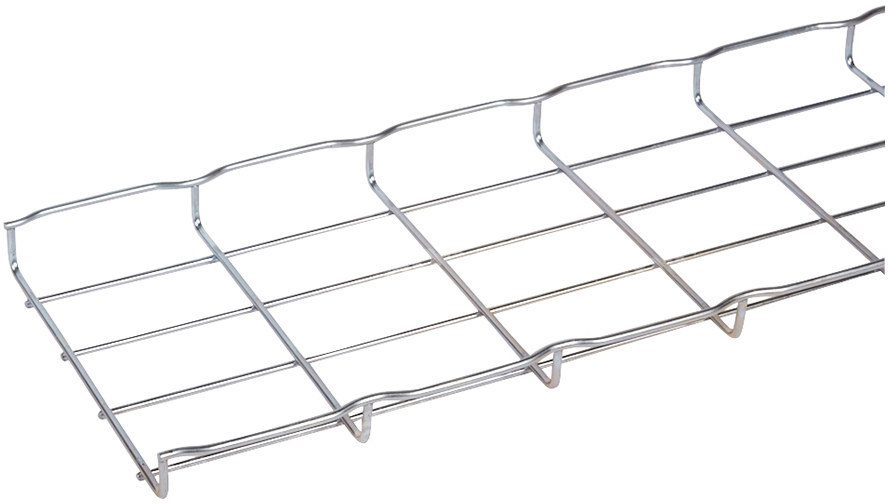

Stainless Steel 304L Mesh Tray, 30x200 mm

Made of stainless steel 304 (1.4301), the tray is processed by pickling and passivation — ensuring corrosion resistance even in aggressive environments, without additional coatings or paints. The material meets requirements for installations in locations with high hygiene standards and exposure to moisture, e.g., in industrial kitchens, laboratories, or medical facilities.

The profile has a U shape, with mesh openings of 50x100 mm, allowing free airflow and easy access to cables. The usable cross-section is 5293 mm², providing sufficient space for routing large quantities of cables or pipes in a single tray — without the need for additional ducts.

The unit length is 3000 mm, and the weight is 0.92 kg/m — facilitating transport and installation, even over long sections. The edges are welded in a T shape, increasing rigidity and eliminating the risk of bending during installation or operation. It has no built-in partitions or connectors — it is a basic element that can be flexibly connected with other system components.

Operating temperature range: -20 to 120 °C — making it safe under variable conditions, e.g., in rooms with central heating or near heat sources. It does not have an E90/E30 certificate — it is not intended for applications requiring fire insulation.

It contains no metallic elements other than 304L steel — no coatings, layers, or additional materials. This means:

• does not chip
• does not emit harmful substances
• does not lose corrosion resistance when cut or bent

Installation is simple: just place on supports or hang on brackets — no need for specialized equipment or tools. All connections are made manually using screws or brackets compatible with the system.

Note: although the tray has high load capacity and corrosion resistance, it is not intended for mechanical loads such as vehicle traffic — only for routing cables and pipes in commercial and industrial buildings.
