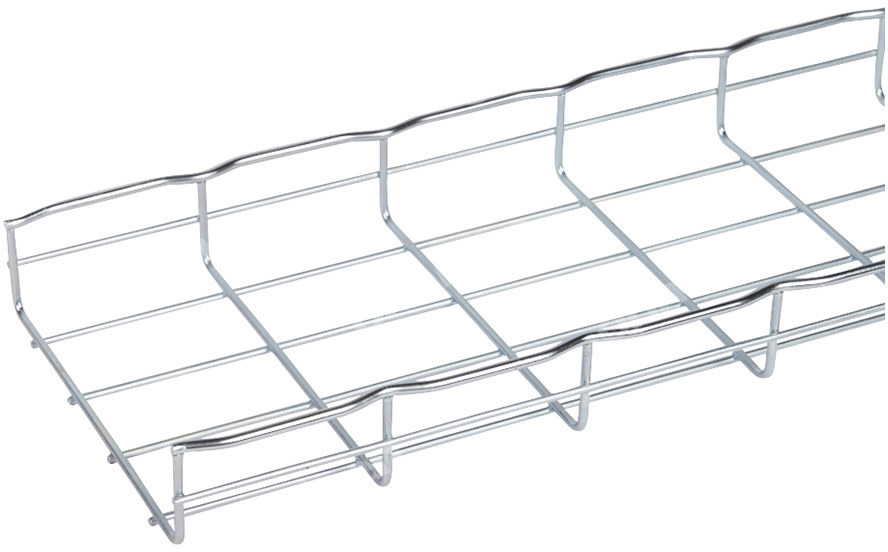

Cable tray CF 54/200, 54x200mm, stainless steel 304L, E90 system /3m/ CM000098

Stainless steel 304L cable tray – corrosion resistance and durability in aggressive environments

Manufactured from stainless steel 304L, the cable tray features high corrosion resistance, making it an ideal solution for installations in areas with high humidity, exposure to chemicals, or requiring frequent cleaning – e.g., in the food, pharmaceutical, medical industries, or municipal facilities. The surface undergoes pickling and passivation, further enhancing its resistance to oxidation and loss of luster over time.

The U-profile with dimensions 54x200 mm provides sufficient space for laying multiple cables or wires while maintaining a lightweight structure. The usable cross-section is 10,293 mm², allowing for effective cable route management without cable crowding. The unit length of 3 meters facilitates transport and installation, and a weight of 1.17 kg/m does not overload supporting structures.

It contains no built-in partitions or connectors – it is a simple, continuous system component that can be easily connected to other components (e.g., crossings, bends) using external mounting elements. This ensures flexible installation adapted to the specific layout of the system.

The operating temperature range from -20°C to +120°C allows use in both cold storage rooms and areas with high ambient temperatures – e.g., with power cables for heating devices or transformers. The material does not degrade under UV radiation or extreme temperature fluctuations.

It does not have a fire resistance classification (E30/E90) – it is not intended for applications requiring functionality maintenance during a fire. Its role is to safely route cables under normal operating conditions, not to ensure power continuity during a fire.

The technical value of this product lies in its simplicity: there are no additional coatings, no artificial additives – just pure 304L steel, well processed and ready for operation where other materials quickly deteriorate.
