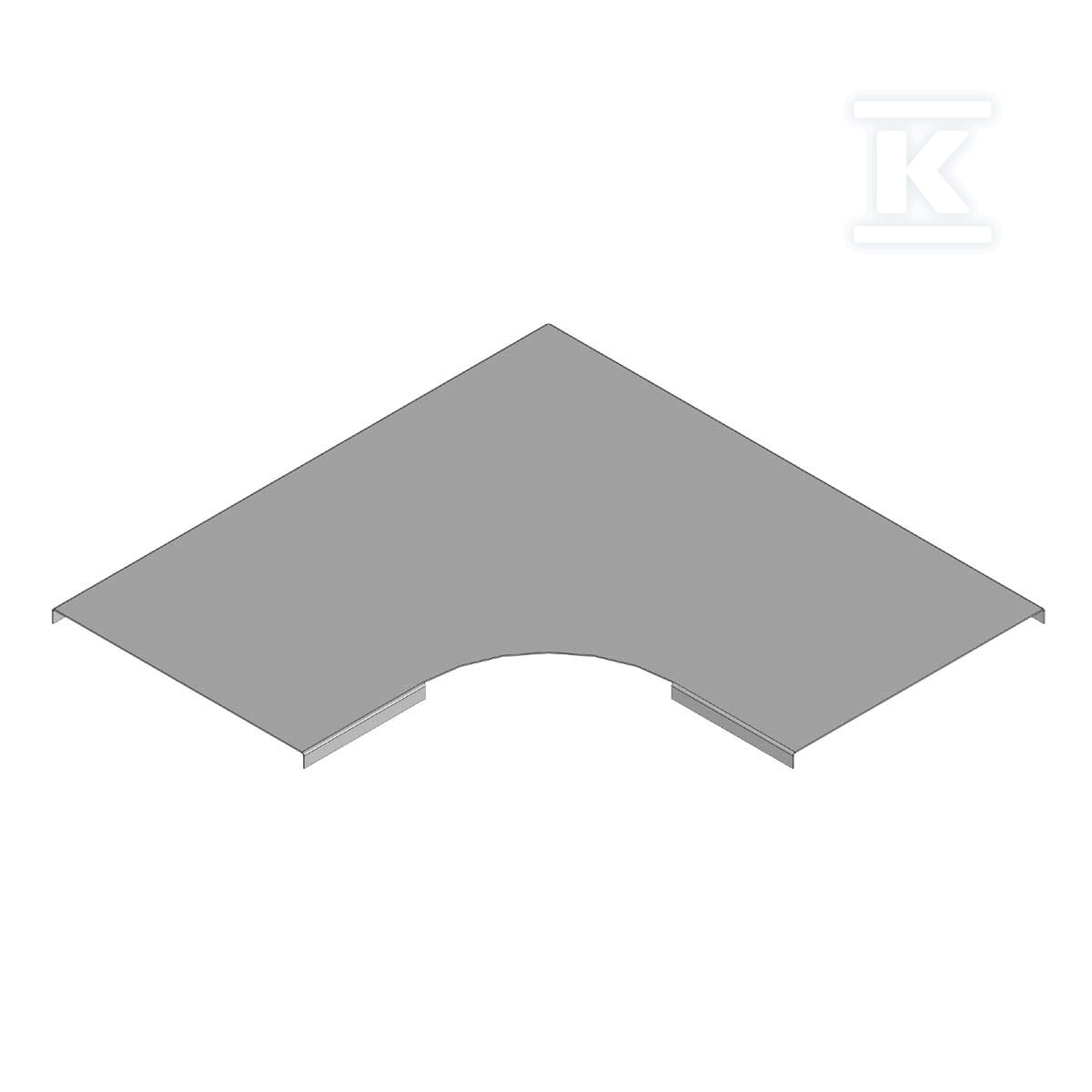

90° bend cover VO 90X400 F VO 90X400_F

Cable tray cover 90° is an element of cable management systems, designed for aesthetic and functional closure of right-angle bends. Made of metal, it provides protection for cables and wires against mechanical damage and environmental influences. Its use improves installation organization and facilitates access to cables when needed.

Mounting and construction

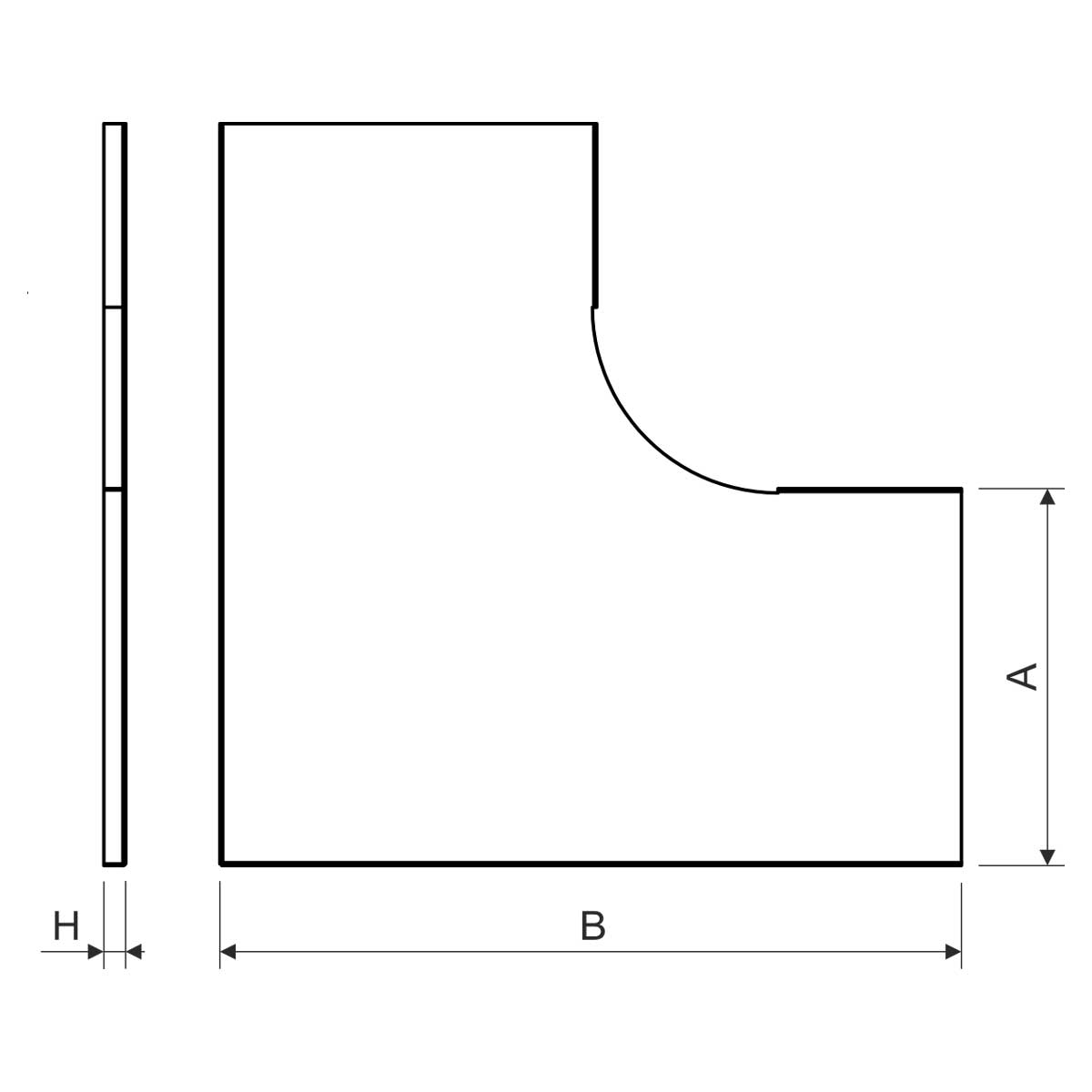

The VO 90X400 F cover is dedicated to bends with a width of 400 mm. Cover holders VU (6 pieces, sold separately) are required for its mounting. The external right angle of the side edges has been replaced with a bevel, which facilitates fitting and installation. The cover design ensures a stable connection with the bend, and its solid construction guarantees durability. It is worth remembering that covers with a width of 300-600 mm are formed during installation – cut-out sides allow adaptation to a specific installation.

Application and compatibility

The VO 90X400 F cover finds application in electrical, telecommunication installations and industrial automation systems. It can be used in both internal and external installations (after appropriate anti-corrosion protection). For systems requiring functionality in fire conditions, please refer to the orange catalog Fire-resistant Systems, which contains detailed information on compatible sets.

Additionally, it is worth mentioning the thickness of the sheet metal used to produce this specific cover – it is 1.26 kg/pc (data from the technical documentation). This translates to greater mechanical strength and resistance to deformation.
