90° bend cover VO 90X500 F VO 90X500_F

90° arc cover for cable tray systems

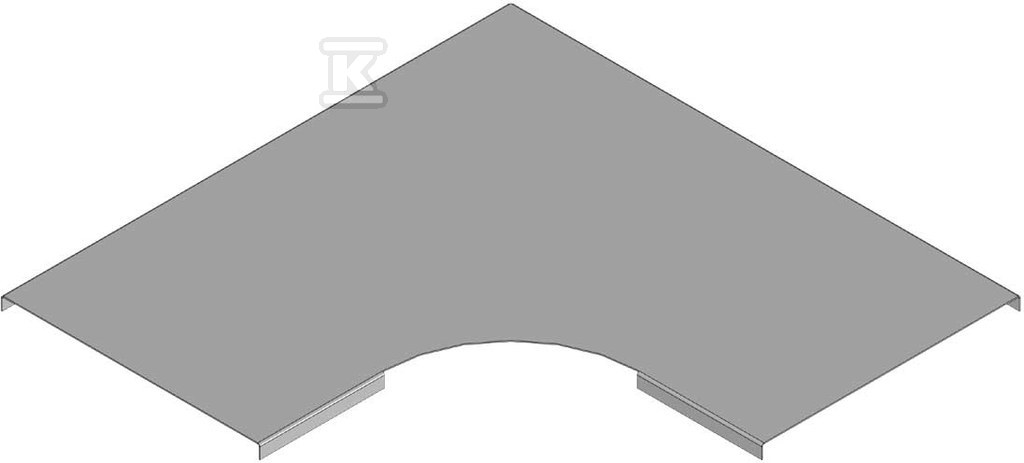

The 90° arc cover NVO 90X500 F by KOPOS is an element of cable tray systems, designed to close and secure cables at 90-degree direction changes. Made of steel, with a hot-dip galvanized coating, it provides durable protection against corrosion and mechanical damage. It is a key element in electrical installations, both in commercial and industrial construction.

Construction and application

The cover is designed for use with cable trays, cable ladders and mesh cable trays with a width of 500 mm. Installation is done using clips (snap-on cover), which simplifies and speeds up installation work. Thanks to its design, the cover ensures safe cable routing and protection from external factors. Its use allows for aesthetic and functional routing of electrical installations in places requiring a change in the direction of cables.

Advantages and benefits

• Durable protection: The hot-dip galvanized coating provides high corrosion resistance, guaranteeing long-term use even in harsh environmental conditions.
• Easy installation: The clip system allows for quick and easy installation without the need for additional tools. This saves time during installation.
• Versatility: Compatible with various types of cable trays (mesh, ladder), which increases its use in different projects.
• Safety: Provides effective protection of cables against mechanical damage and weather influences.
• Compliance with standards: The product meets safety and quality requirements, confirmed by appropriate declarations (of conformity, REACH, RoHS).
• Maintaining efficiency: The cover design allows maintaining the efficiency of the installation in the event of a fire (E30, E90 system). This is an important aspect for building safety.
• Solid construction: Made of high-quality steel ensures strength and reliability even under heavy load.

Additionally, it is worth mentioning the availability of technical documentation (catalog sheets) and the possibility of ordering covers in a painted version for specific aesthetic requirements of the project.
