External wall bracket ZVNE 125 S (30 pcs.) ZVNE 125_S

External Cable Tray Hanger – Robust Support and Easy Installation

This external hanger, designed for suspending cable trays, provides a reliable solution for creating organized and safe electrical installations. Made from steel with electrogalvanized finish, it ensures durability and corrosion resistance. Ideal for both indoor and outdoor applications.

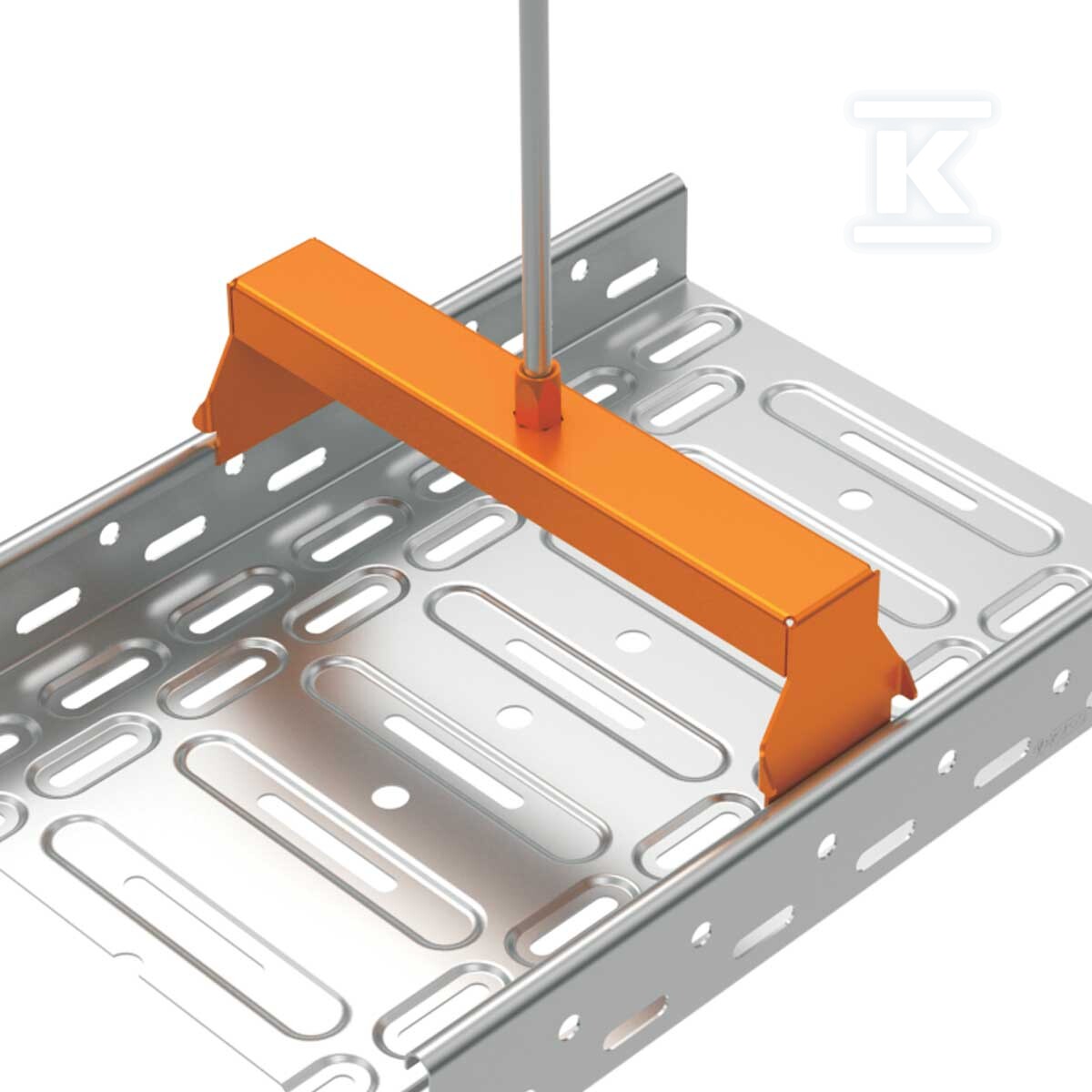

The hanger is designed to work with threaded rods ZT 8 or ZT 10 and nuts MN (nut not included in the set – select the appropriate size to match the threaded rod diameter). Installation is simple and fast: simply suspend it using the bent side edges of cable trays with a height of 125 mm, making it especially suitable for Sendzimir-type cable trays.

• Robust Construction: Made from steel with a maximum load capacity of up to 900 N, ensuring stable and secure support for cable trays.
• Versatility: Suitable for suspending partitioned trunking, increasing installation flexibility.
• Easy Installation: Quick and simple mounting using a threaded rod and nut.
• Corrosion Resistance: Electrogalvanized finish provides long-term protection against atmospheric and environmental factors.

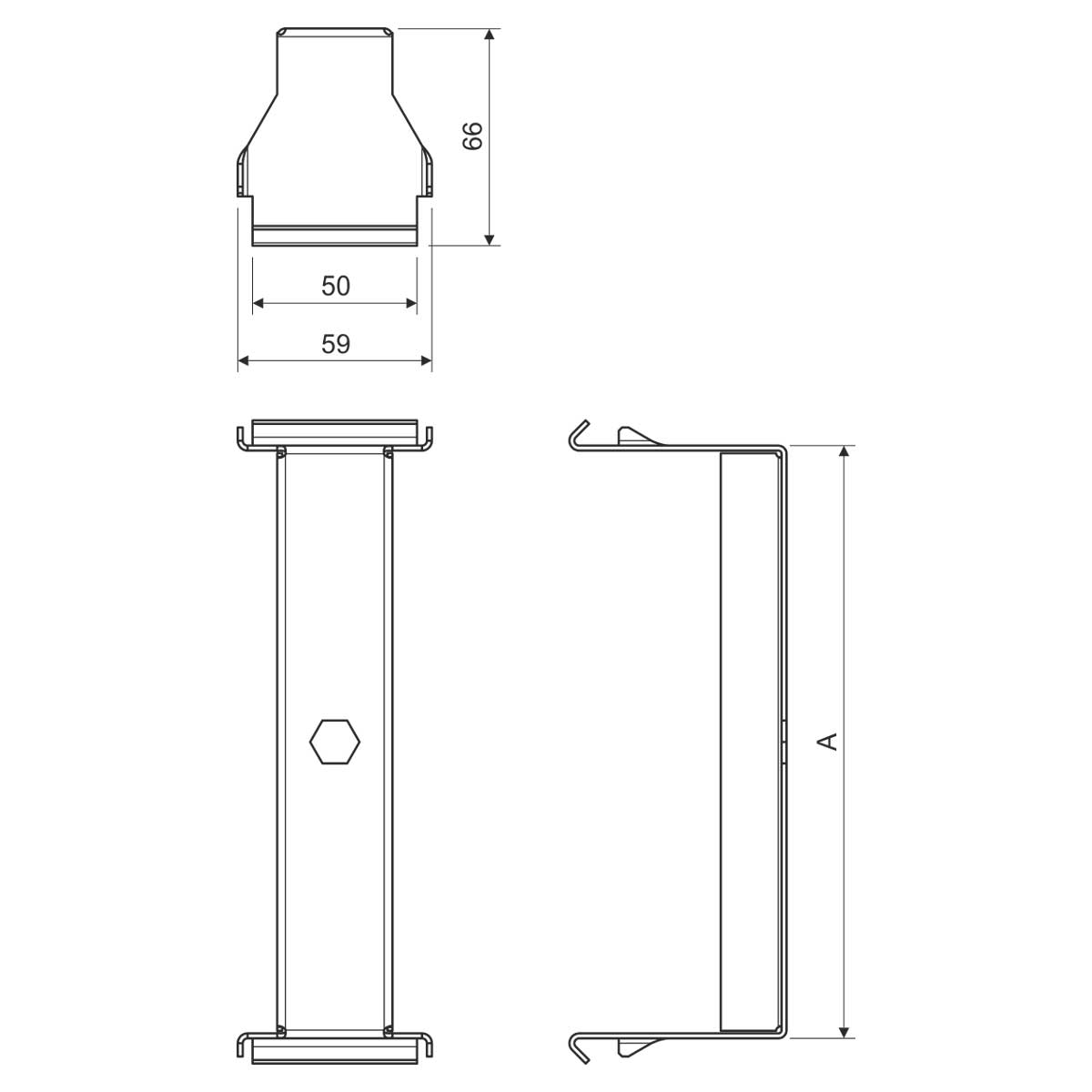

• Compact Dimensions: Dimensions of 50 mm x 65 mm x 125 mm allow for discreet installation even in confined spaces.

The hanger features a suspension rod diameter of 10 mm and a material thickness of 1 mm. Its design, based on a suspended rod system, ensures solid and secure mounting. Designed for cable trays with a width of 125 mm, it is the ideal solution for installers seeking a reliable and easy-to-install cable tray suspension system. Temperature resistance from -50°C to +150°C extends its range of applications.
