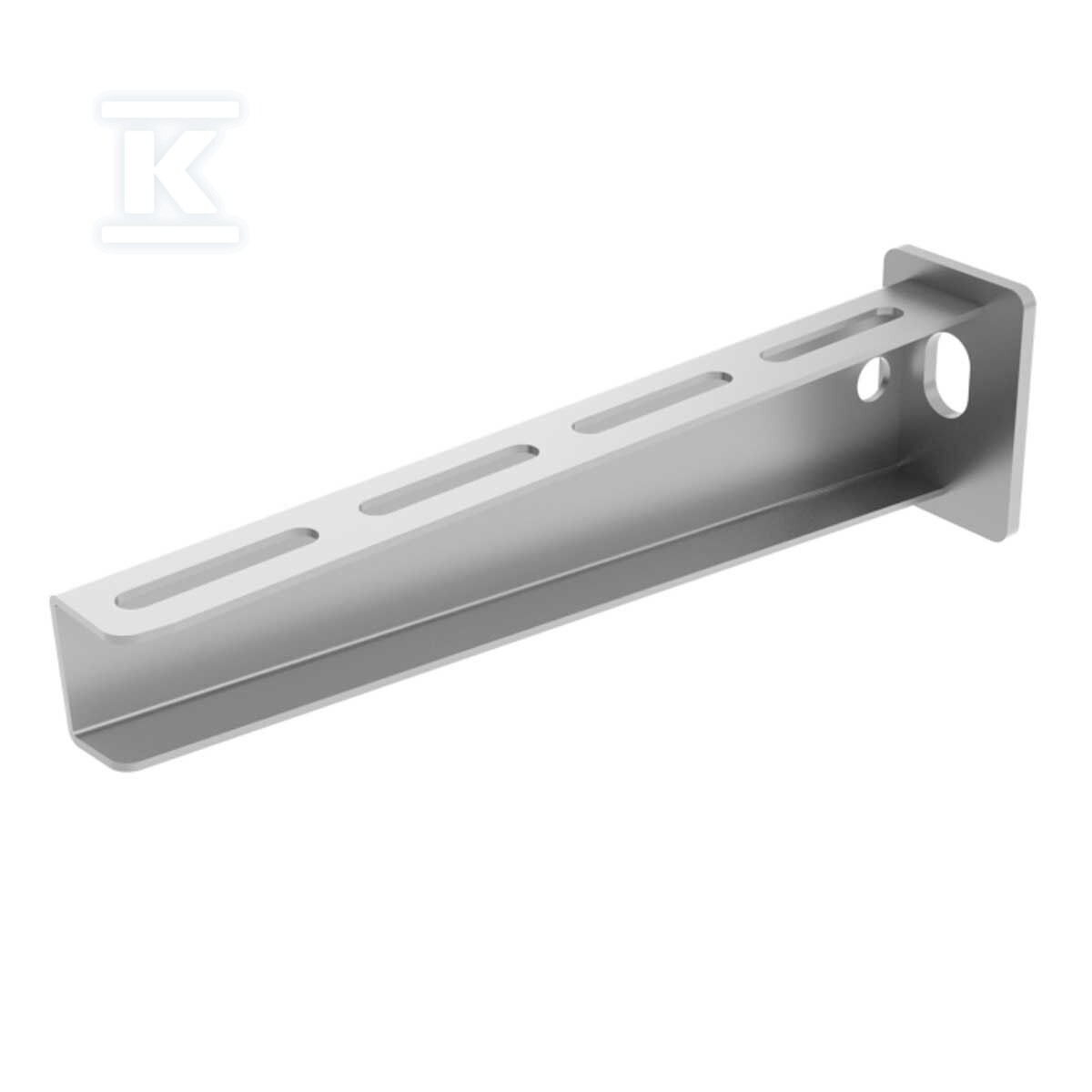

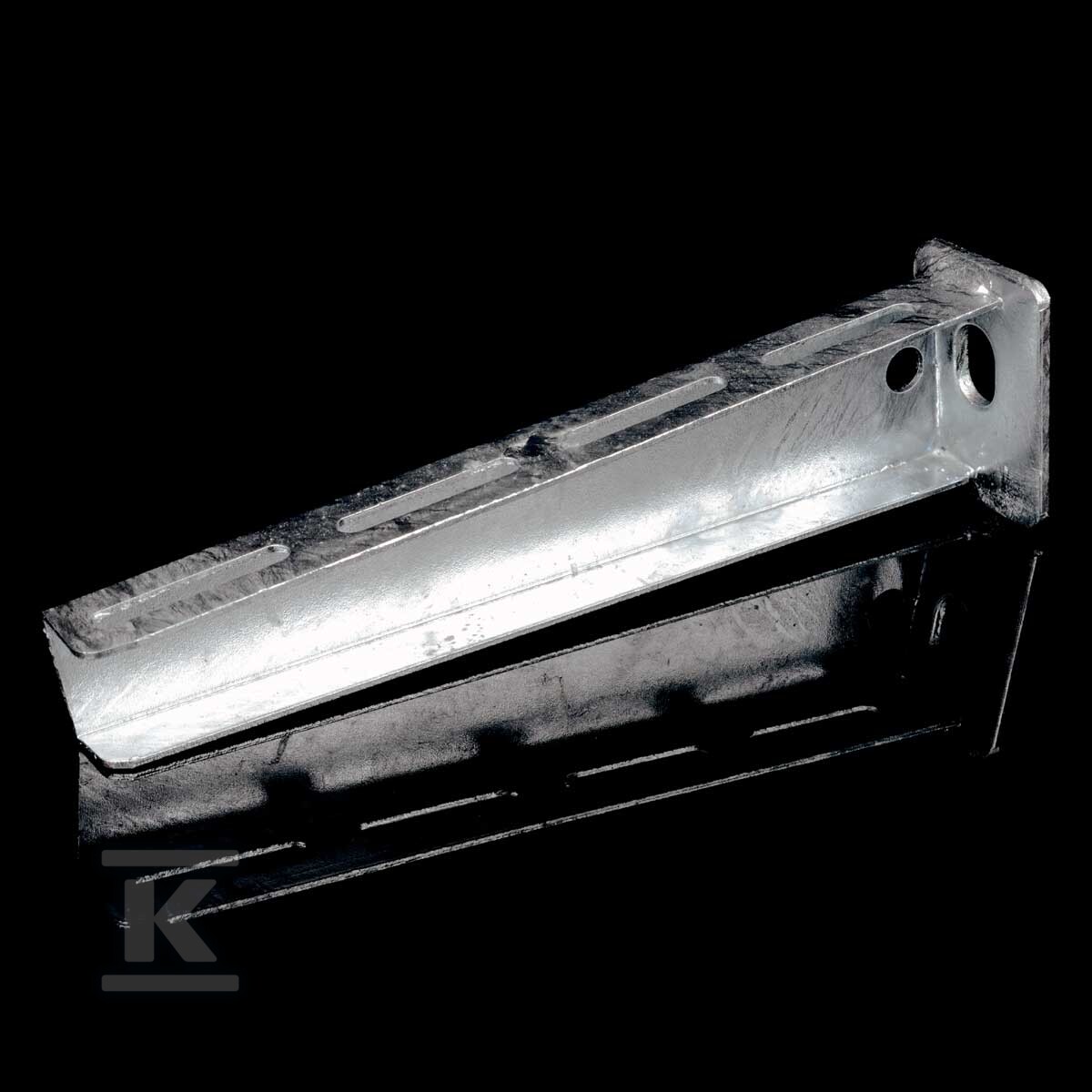

Heavy-duty clip DTN 100 F (20 pcs.) DTN 100_F

Cable tray mounting – robust DTN 100 F bracket

This set of 20 heavy-duty DTN 100 F brackets provides a solid solution for the safe and durable mounting of cable trays. Made of steel and protected with hot-dip galvanizing, it offers high resistance to corrosion and mechanical damage, which is crucial both during installation and long-term operation. The bracket is designed for systems with a width of 100 mm, making it ideal for many standard installations.

The DTN 100 F bracket is not just a mount – it is an element ensuring safety. It has an E30 and E90 fire resistance certificate, which means that in the event of a fire, it will maintain its functionality for a specified time, enabling evacuation and rescue operations.

• Robust construction: Made of steel provides stable and secure support for cable trays.
• Corrosion resistance: Hot-dip galvanizing protects against moisture and atmospheric factors, guaranteeing a long service life.
• Universal mounting: Possibility of mounting on the wall or ceiling profile increases installation flexibility. For mounting on SPLN, SPSN or SPU ceiling profiles, S 10X20 screws, PD 10 washers and M 10 nuts are required. For mounting on SPL and SPS profiles, sliding nuts PM 41 M 10 with S 10X20 screws will be useful. The cable tray is mounted using NSM 6X10 screws.
• Fire safety: E30/E90 certificate ensures functionality in case of fire.
• Wide temperature range: Operation in the range of -50°C to 150°C allows for use in difficult environmental conditions.

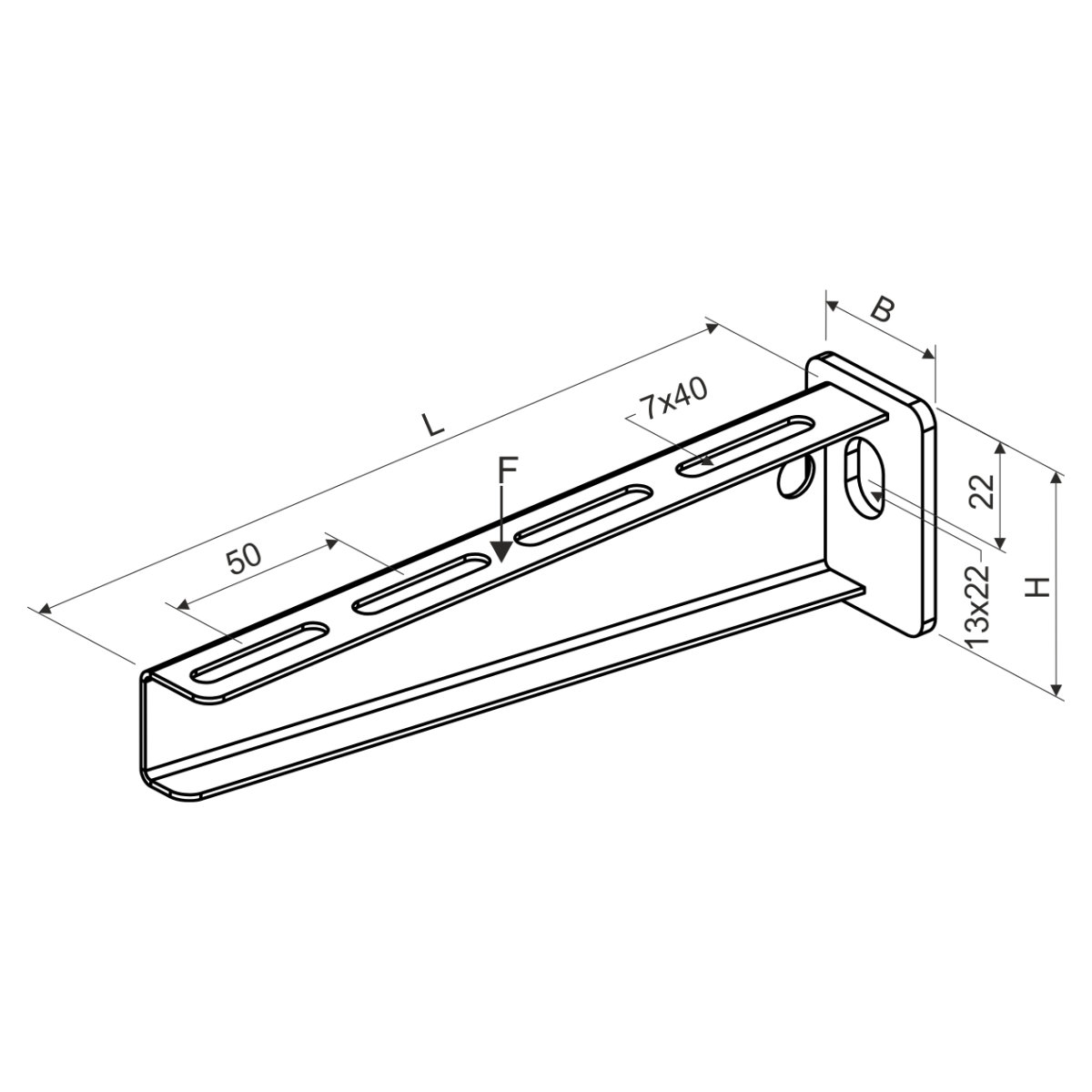

The bracket is characterized by dimensions of 45 mm height and 110 mm length and an angle of 90 degrees. Its zinc color provides an aesthetic appearance of the installation. This product is a reliable solution for both professional installers looking for solid and safe mounting elements, and for end customers who value durability and safety of electrical installation.
