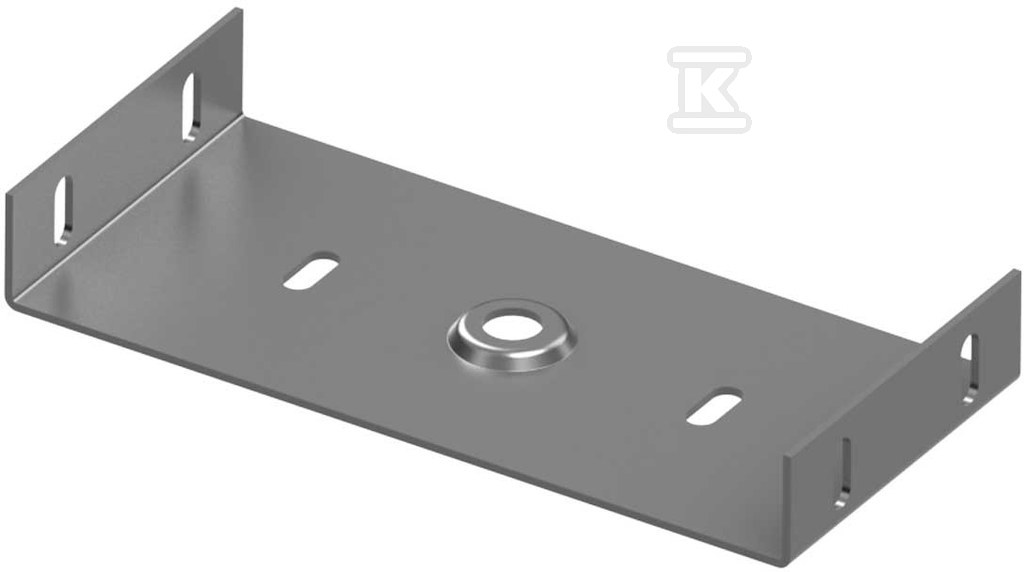

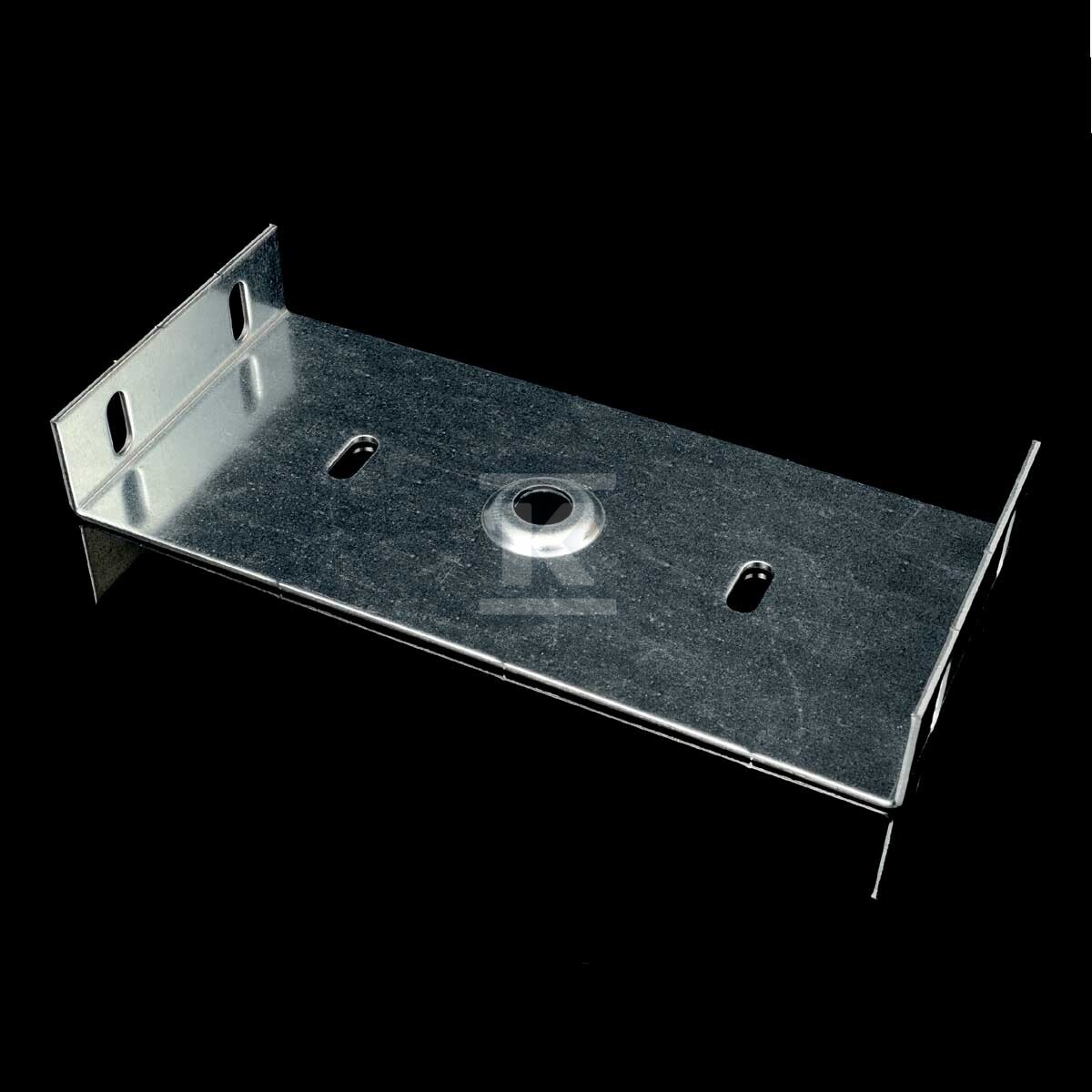

Internal bracket ZVNI 125 S (40 pcs.) ZVNI 125_S

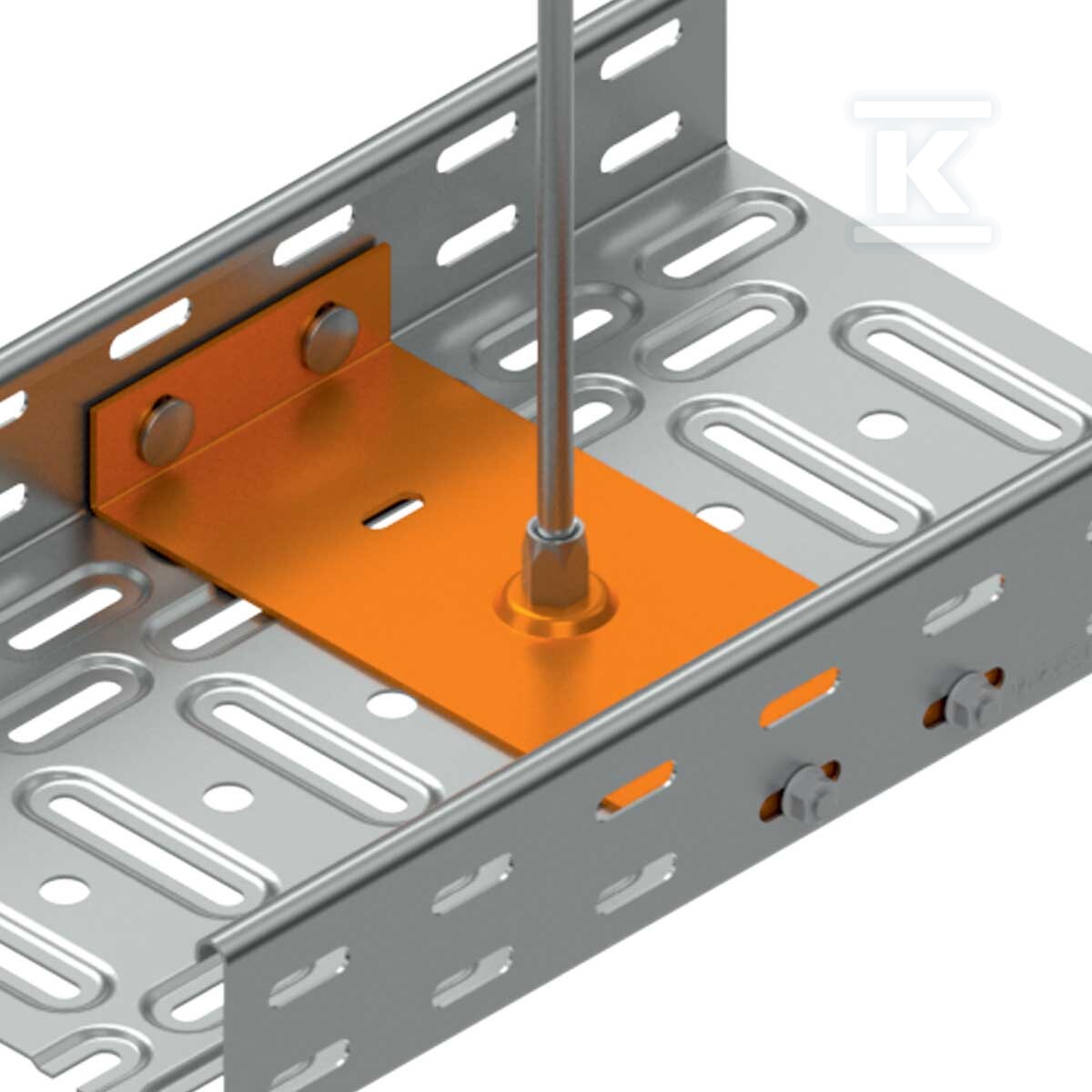

Cable tray hanger – solid support for your installation

This internal hanger, designed for suspending cable trays, is a simple and effective solution for ceiling mounting. Made of steel with a galvanized surface – it provides durability and corrosion resistance. The hanger's design allows for easy mounting using threaded rod, which translates to time and cost savings during installation.

Design and application

The hanger is designed to work with Sendzimira cable trays with a width of 125 mm. Its construction allows it to be slid into the tray before connecting to the next elements, which facilitates and speeds up the assembly process. Designed for suspension using threaded rod ZT 8 or ZT 10 and nut MN (nut is not included in the set). Thanks to the bent edges of the side walls, the hanger stably supports the cable tray.

Key features and benefits

• Strength: Permissible load up to 900 N guarantees safe support even for heavy cable trays.
• Solid construction: Made of steel ensures long-term reliability and resistance to mechanical damage.
• Corrosion resistance: Galvanized surface protects against moisture and other external factors.
• Easy installation: Compatible with popular threaded rods ZT 8 and ZT 10 and nuts MN, which simplifies installation.
• Versatility: Designed for Sendzimira cable trays with a width of 125 mm.

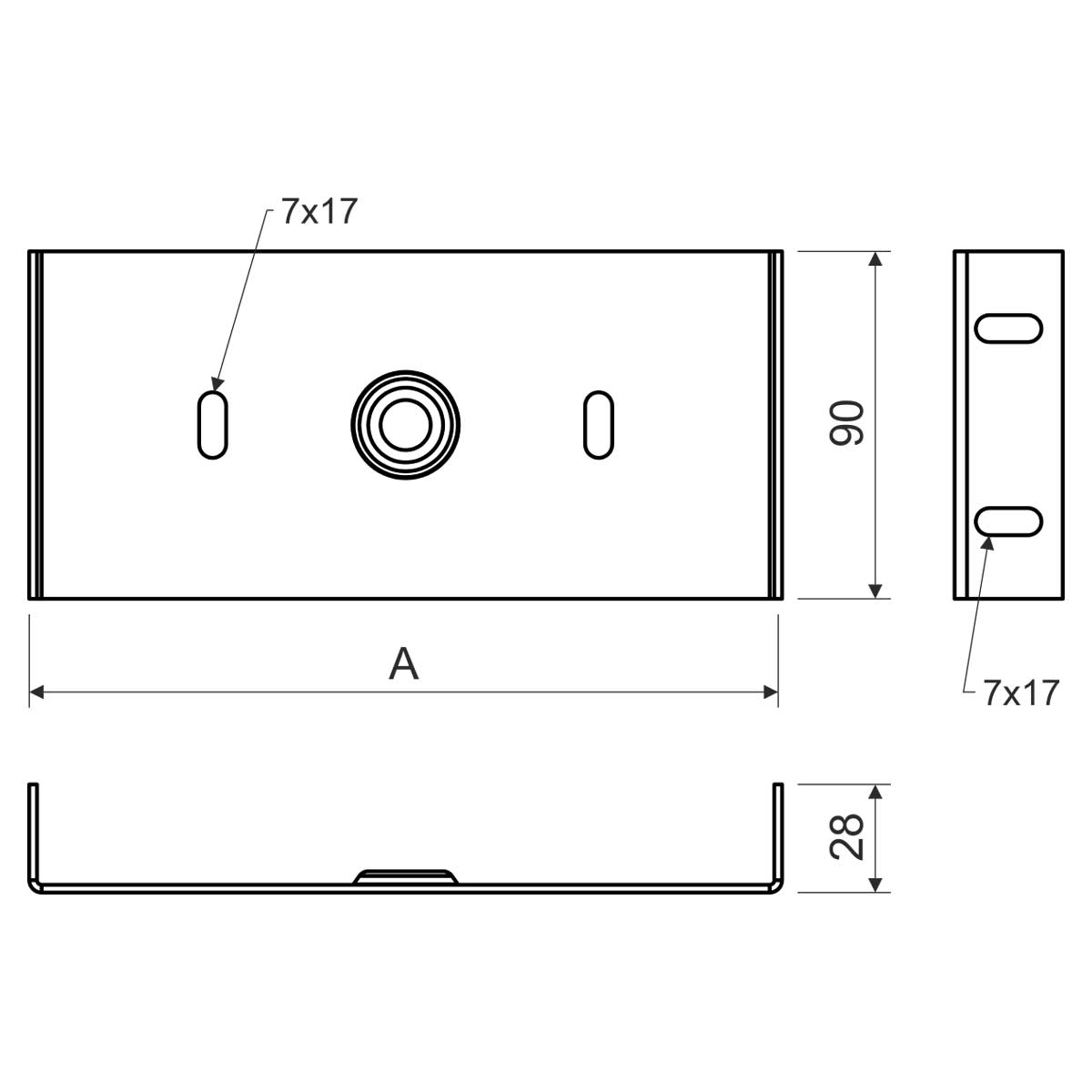

• Dimensions: Height 50 mm, width 125 mm, length 90 mm and hole diameter 10 mm ensure compatibility with most standard suspension systems.

Remember that when choosing a nut, you should consider the diameter of the threaded rod used. If the functionality of the system is required in fire conditions, please refer to the detailed information contained in the orange catalog Fire-resistant Systems.
